Through-hole TO-92-3 package

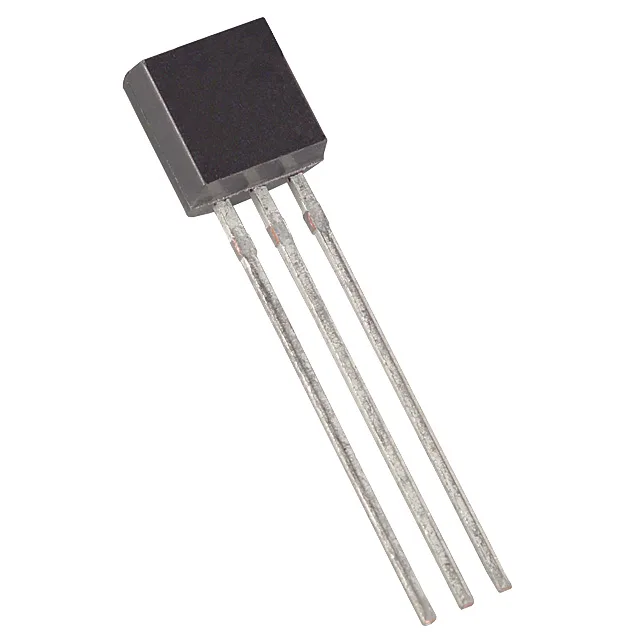

The DS1233D-5+: The three-lead footprint is a standard 0.100-inch pitch row — the board layout must match the legacy hole pattern and lead spacing.
Analog Devices EconoReset Simple Reset/Power-On Reset IC, DS1233D-5+, Active Low, Open Drain Output, 4.625V Threshold, TO-92-3 Through Hole, Bulk.
$2.18Ref. price · indicative, final on quote
PackagingTO-226-3, TO-92-3 (TO-226AA)
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Simple Reset/Power-On Reset |
| Series | EconoReset |
| Mounting type | Through Hole |
| Voltage - threshold | 4.625V |
| Number of voltages monitored | 1 |
| Operating temperature | -40°C ~ 85°C (TA) |
| Reset | Active Low |
| Output | Open Drain or Open Collector |
| Package | Bulk |
| Reset timeout | 250ms Minimum |
| Case | TO-226-3, TO-92-3 (TO-226AA) |
Product details
Frequently asked questions
What is DS1233D-5+'s listed type and reset behaviour?
The output is open drain or open collector, so it requires an external pull-up resistor to the logic supply rail.
