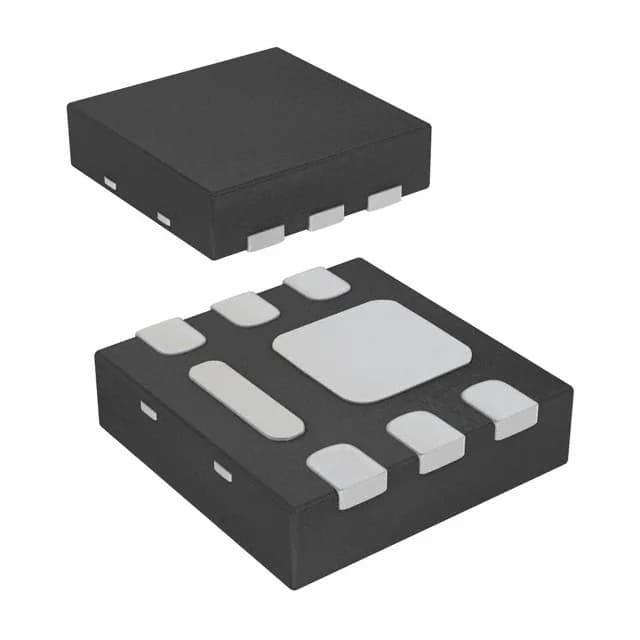

AON2290
Alpha & Omega Semiconductor Inc.
Tape & Reel (TR) Cut Tape (CT)-55°C ~ 150°C (TJ)N-Channel
Ref. price$0.5900
Lead time on requestGet quote ›
Alpha & Omega Semiconductor Inc. AON2 Series
3 variants · Alpha & Omega Semiconductor Inc.
About the Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series series
The Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of 6-UDFN Exposed Pad, FET feature of - and mounting type of Surface Mount. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and drive voltage (Max rds on, min rds on), so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below. All listed Alpha & Omega Semiconductor Inc. AON2 Series part numbers are active and orderable.
Select a variant by
- Current - continuous drain (Id) @ 25°C
- 4.5A (Ta) · 8A (Ta)
- Drain to source voltage
- 12 V · 20 V · 100 V
- Drive voltage (Max rds on, min rds on)
- 1.5V, 4.5V · 4.5V, 10V
- FET type
- N-Channel · P-Channel
- Gate charge (Qg) (Max) @ vgs
- 12 nC @ 10 V · 18 nC @ 4.5 V
- Input capacitance (Ciss) (Max) @ vds
- 415 pF @ 50 V · 1140 pF @ 10 V · 1370 pF @ 6 V
- Operating temperature
- -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | AON2290 | AON2403 | AON2406 |
|---|---|---|---|
| Current - continuous drain (Id) @ 25°C | 4.5A (Ta) | 8A (Ta) | 8A (Ta) |
| Drain to source voltage | 100 V | 12 V | 20 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V | 1.5V, 4.5V | 1.5V, 4.5V |
| FET type | N-Channel | P-Channel | N-Channel |
| Gate charge (Qg) (Max) @ vgs | 12 nC @ 10 V | 18 nC @ 4.5 V | 18 nC @ 4.5 V |
| Input capacitance (Ciss) (Max) @ vds | 415 pF @ 50 V | 1370 pF @ 6 V | 1140 pF @ 10 V |
| Operating temperature | -55°C ~ 150°C (TJ) | -55°C~150°C(TJ) | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Case
- 6-UDFN Exposed Pad
- FET feature
- -
- Mounting type
- Surface Mount
- Power dissipation
- 2.8W (Ta)
- Technology
- MOSFET (Metal Oxide)
Request a quote on any Alpha & Omega Semiconductor Inc. AON2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series variants differ?
- Alpha & Omega Semiconductor Inc. AON2 Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, drive voltage (Max rds on, min rds on) and FET type. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.
- How many Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series part numbers are listed?
- 3 Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Alpha & Omega Semiconductor Inc. Alpha & Omega Semiconductor Inc. AON2 Series?
- Request a quote (RFQ) for any Alpha & Omega Semiconductor Inc. AON2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
