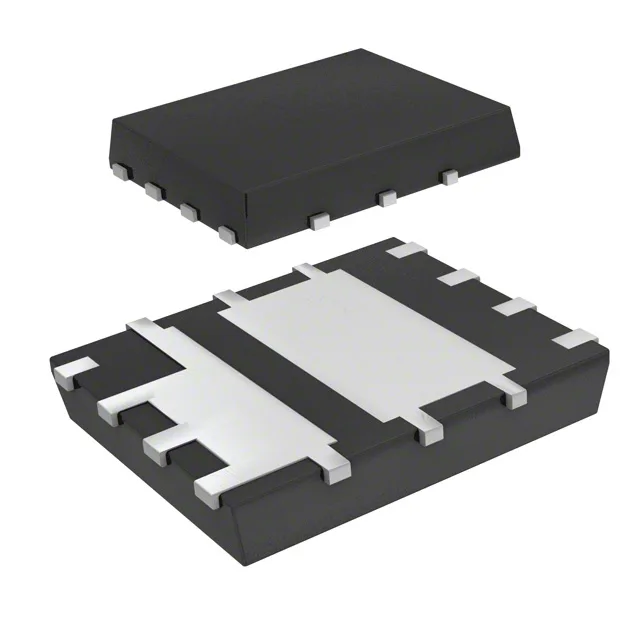

Alpha & Omega Semiconductor Inc. AON6971
MPNAON6971
Obsolete
$1.1400Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SRFET™ |
| Mounting | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 23A, 40A |
| Power - max | 5W, 4.1W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Logic Level Gate |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Case | 8-PowerWDFN |
| Vgs(th) (Max) @ id | 2.2V @ 250µA |
| Rds on (Max) @ id, vgs | 5.7mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 23nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 1010pF @ 15V |
