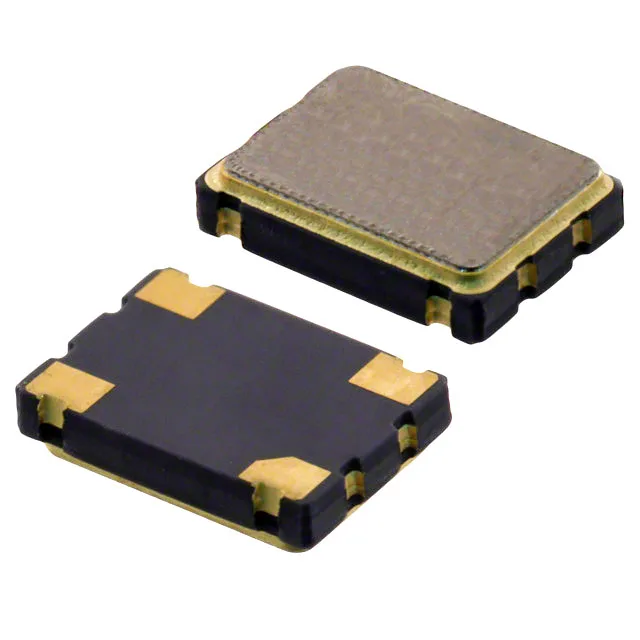

ASV2-25.000MHZ-C-L1-T
Abracon LLC
ASV2-10°C~70°CTape & Reel (TR)
Ref. price$1.0163
Lead time on requestGet quote
Abracon LLC ASV2 Series
76 variants · Abracon LLC
About the Abracon LLC ASV2 Series
The Abracon LLC ASV2 Series series groups 76 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common absolute pull range of -, base resonator of Crystal and case of 4-SMD, No Lead. Variants differ by current - supply, frequency and height - seated, so you can match the exact current - supply your application requires using the selection guide below.
Select a variant by
- Current - supply
- 15mA · 20mA
- Frequency
- 25 MHz · 29.4912 MHz
- Height - seated
- 0.055\" (1.40mm) · 0.071\" (1.80mm)
- Operating temperature
- -40°C ~ 85°C · -10°C~70°C
- Size (Dimension)
- 0.276\" L x 0.197\" W (7.00mm x 5.00mm) · 0.276\" L x 0.200\" W (7.00mm x 5.08mm)
Shared specifications
- Absolute pull range
- -
- Base resonator
- Crystal
- Case
- 4-SMD, No Lead
- Current - supply (Disable)
- 10µA
- Frequency stability
- ±50ppm
- Function
- Enable/Disable
- Mounting
- Surface Mount
- Output
- HCMOS
- Package
- Tape & Reel (TR)
- Ratings
- -
- Type
- XO (Standard)
- Voltage
- 3.3V
Variant comparison
| Parameter | ASV2-25.000MHZ-C-L1-T | ASV-29.4912MHZ-LCS-T |
|---|---|---|
| Current - supply | 20mA | 15mA |
| Frequency | 25 MHz | 29.4912 MHz |
| Height - seated | 0.055\" (1.40mm) | 0.071\" (1.80mm) |
| Operating temperature | -10°C~70°C | -40°C ~ 85°C |
| Size (Dimension) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) | 0.276\" L x 0.200\" W (7.00mm x 5.08mm) |
Request a quote on any Abracon LLC ASV2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
