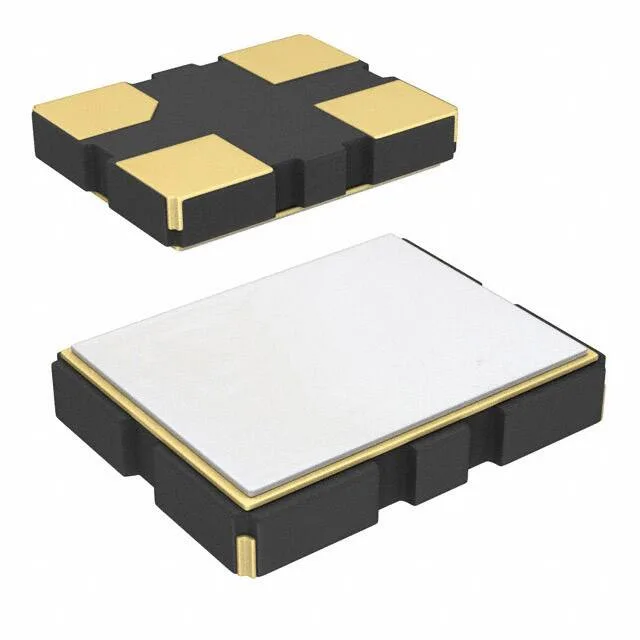

ASEDV-19.200MHZ-LR-T
Abracon LLC
Bulk-40°C~85°CXO (Standard)
Lead time on requestGet quote
Abracon LLC ASEDV Series
32 variants · Abracon LLC
About the Abracon LLC ASEDV Series
The Abracon LLC ASEDV Series series groups 32 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common absolute pull range of -, base resonator of Crystal and case of 4-SMD, No Lead. Variants differ by current - supply, frequency and package, so you can match the exact current - supply your application requires using the selection guide below.
Select a variant by
- Current - supply
- 3mA · 4mA
- Frequency
- 19.2 MHz · 27 MHz
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT)
- Voltage
- 1.6V ~ 3.6V · 2.5V
Shared specifications
- Absolute pull range
- -
- Base resonator
- Crystal
- Case
- 4-SMD, No Lead
- Current - supply (Disable)
- 10µA
- Frequency stability
- ±25ppm
- Function
- Enable/Disable
- Height - seated
- 0.047\" (1.20mm)
- Mounting
- Surface Mount
- Operating temperature
- -40°C~85°C
- Output
- HCMOS, LVCMOS
- Ratings
- -
- Size (Dimension)
- 0.126\" L x 0.098\" W (3.20mm x 2.50mm)
Variant comparison
| Parameter | ASEDV-19.200MHZ-LR-T | ASEDV-27.000MHZ-LR-T |
|---|---|---|
| Current - supply | 3mA | 4mA |
| Frequency | 19.2 MHz | 27 MHz |
| Package | Bulk | Tape & Reel (TR); Cut Tape (CT) |
| Voltage | 2.5V | 1.6V ~ 3.6V |
Request a quote on any Abracon LLC ASEDV Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
