ASE2-44.000MHZ-ET
Abracon LLC
ASE2-20°C~70°CTape & Reel (TR); Cut Tape (CT)
Ref. price$2.1600
Lead time on requestGet quote

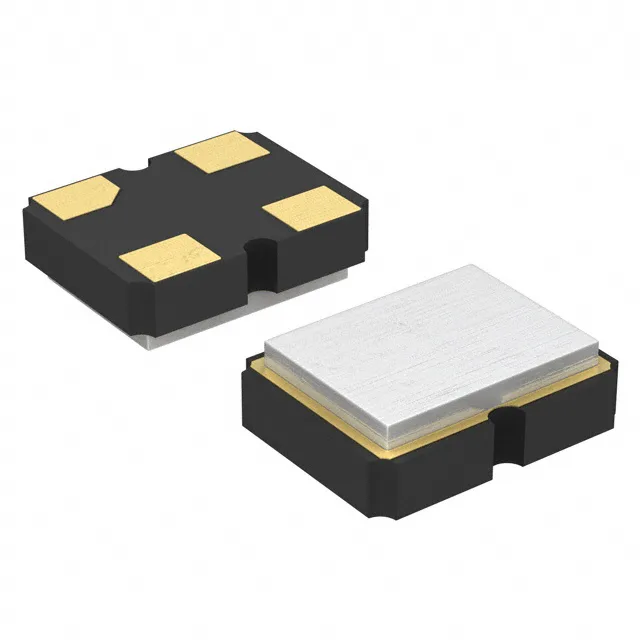

Abracon LLC ASE2 Series
51 variants · Abracon LLC
About the Abracon LLC ASE2 Series
The Abracon LLC ASE2 Series series groups 51 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common absolute pull range of -, base resonator of Crystal and case of 4-SMD, No Lead. Variants differ by current - supply, frequency and frequency stability, so you can match the exact current - supply your application requires using the selection guide below.
Select a variant by
- Current - supply
- 8mA · 13mA · 15mA
- Frequency
- 13.5 MHz · 20 MHz · 25 MHz · 44 MHz · 50 MHz
- Frequency stability
- ±50ppm · ±100ppm
- Function
- Enable/Disable · Standby (Power Down)
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C · -20°C ~ 70°C · -20°C~70°C · -10°C~70°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Voltage
- 2.5V · 3.3V
Shared specifications
- Absolute pull range
- -
- Base resonator
- Crystal
- Case
- 4-SMD, No Lead
- Current - supply (Disable)
- 10µA
- Height - seated
- 0.047\" (1.20mm)
- Mounting
- Surface Mount
- Output
- CMOS
- Ratings
- -
- Size (Dimension)
- 0.126\" L x 0.098\" W (3.20mm x 2.50mm)
- Type
- XO (Standard)
Variant comparison
| Parameter | ASE2-44.000MHZ-ET | ASE2-25.000MHZ-LC-T | ASE2-50.000MHZ-LC-T | ASE2-50.000MHZ-ET | ASE2-13.500MHZ-ET | ASE2-20.000MHZ-ET |
|---|---|---|---|---|---|---|
| Current - supply | 15mA | 8mA | 15mA | 15mA | 8mA | 8mA |
| Frequency | 44 MHz | 25 MHz | 50 MHz | 50 MHz | 13.5 MHz | 20 MHz |
| Frequency stability | ±100ppm | ±50ppm | ±50ppm | ±100ppm | ±100ppm | ±100ppm |
| Function | Standby (Power Down) | Enable/Disable | Enable/Disable | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Operating temperature | -20°C~70°C | -40°C~85°C | -40°C~85°C | -20°C~70°C | -20°C~70°C | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Voltage | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
Request a quote on any Abracon LLC ASE2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
