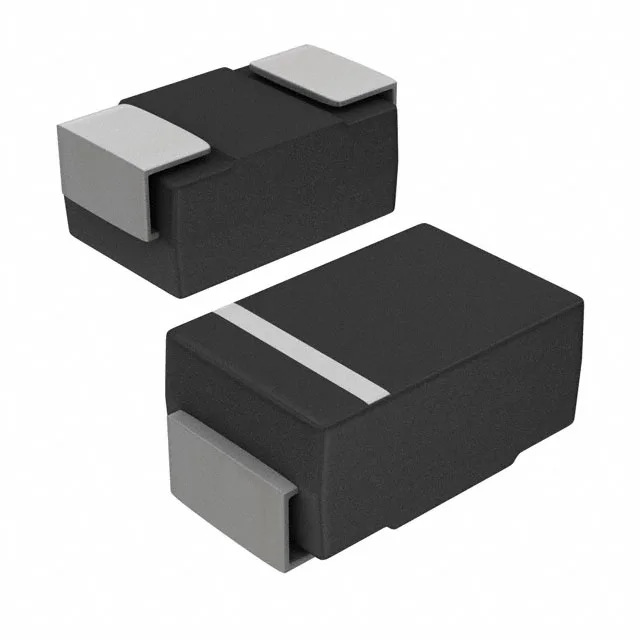

SMAJ100A/TR13
YAGEO
SMAJ-55°C~150°C(TJ)Tape & Reel (TR)
Ref. price$0.0561
Lead time on requestGet quote
YAGEO SMAJ Series
192 variants · YAGEO
About the YAGEO SMAJ Series
The YAGEO SMAJ Series series groups 192 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common capacitance @ frequency of -, case of DO-214AC, SMA and mounting of Surface Mount. Variants differ by applications, current - peak pulse (10/1000μs) and operating temperature, so you can match the exact applications your application requires using the selection guide below.
Select a variant by
- Applications
- Automotive · General Purpose
- Current - peak pulse (10/1000μs)
- 2.3A · 2.5A · 22A · 23.5A
- Operating temperature
- -65°C ~ 150°C (TJ) · -65°C~150°C(TJ) · -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Voltage - breakdown
- 11.1V · 12.2V · 111V · 122V
- Voltage - clamping (Max) @ ipp
- 17V · 18.2V · 162V · 177V
- Voltage - reverse standoff
- 10V · 11V · 100V · 110V
Shared specifications
- Capacitance @ frequency
- -
- Case
- DO-214AC, SMA
- Mounting
- Surface Mount
- Power - peak pulse
- 400W
- Power line protection
- No
- Type
- Zener
Variant comparison
| Parameter | SMAJ100A/TR13 | SMAJ100CA/TR13 | SMAJ100CA/TR7 | SMAJ10A/TR13 | SMAJ10A/TR7 | SMAJ10CA-AT/TR13 |
|---|---|---|---|---|---|---|
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | Automotive |
| Current - peak pulse (10/1000μs) | 2.5A | 2.5A | 2.5A | 23.5A | 23.5A | 23.5A |
| Operating temperature | -55°C~150°C(TJ) | -55°C ~ 150°C (TJ) | -65°C~150°C(TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) |
| Voltage - breakdown | 111V | 111V | 111V | 11.1V | 11.1V | 11.1V |
| Voltage - clamping (Max) @ ipp | 162V | 162V | 162V | 17V | 17V | 17V |
| Voltage - reverse standoff | 100V | 100V | 100V | 10V | 10V | 10V |
Request a quote on any YAGEO SMAJ Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
