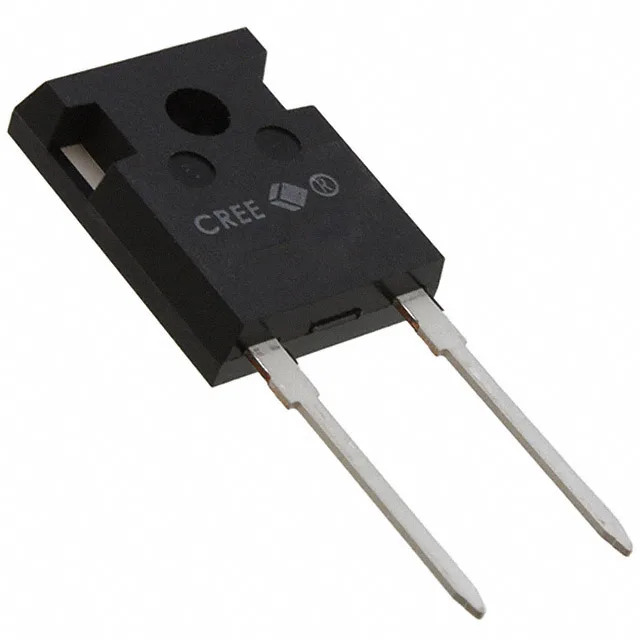

Wolfspeed, Inc. C4D20120H
MPNC4D20120H
Active
DIODE SIL CARB 1.2KV 54A TO247-2
$23.55Ref. price · indicative, final on quote
PackagingTO-247-2
SeriesZ-Rec®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Z-Rec® |
| Diode type | Silicon Carbide Schottky |
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 1200 V |
| Voltage - forward (Vf) (Max) @ if | 1.8 V @ 20 A |
| Current - reverse leakage @ vr | 200 µA @ 1200 V |
| Current - average rectified | 54A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | No Recovery Time > 500mA (Io) |
| Package | Tube |
| Case | TO-247-2 |
| Capacitance @ vr, | 1.5nF @ 0V, 1MHz |
| Reverse recovery time | 0 ns |
