MS51FC0AE
Nuvoton Technology Corporation
Tube-40°C ~ 105°C (TA)24MHz
Ref. price$1.2000
Lead time on requestGet quote ›
Winbond Electronics MS51 Series
7 variants · Winbond Electronics
About the Winbond Electronics Winbond Electronics MS51 Series series
The Winbond Electronics Winbond Electronics MS51 Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connectivity of I²C, SPI, UART/USART, core processor of 8051 and core size of 8-Bit. Variants differ by case, data converters and number of i (O), so you can match the exact case your application requires using the selection guide below. All listed Winbond Electronics MS51 Series part numbers are active and orderable.
Select a variant by
- Case
- 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 20-WFQFN Exposed Pad · 28-TSSOP (0.173\", 4.40mm Width) · 32-LQFP
- Data converters
- A/D 4x12b SAR · A/D 8x12b SAR · A/D 10x12b SAR · A/D 15x12b SAR
- Number of i (O)
- 8 · 18 · 26 · 30
- Operating temperature
- -40°C ~ 105°C (TA) · -40°C~105°C(TA)
- Package
- Tray · Tube
- Program memory size
- 8KB (8K x 8) · 16KB (16K x 8) · 32KB (32K x 8)
- RAM size
- 1K x 8 · 2K x 8
Variant comparison

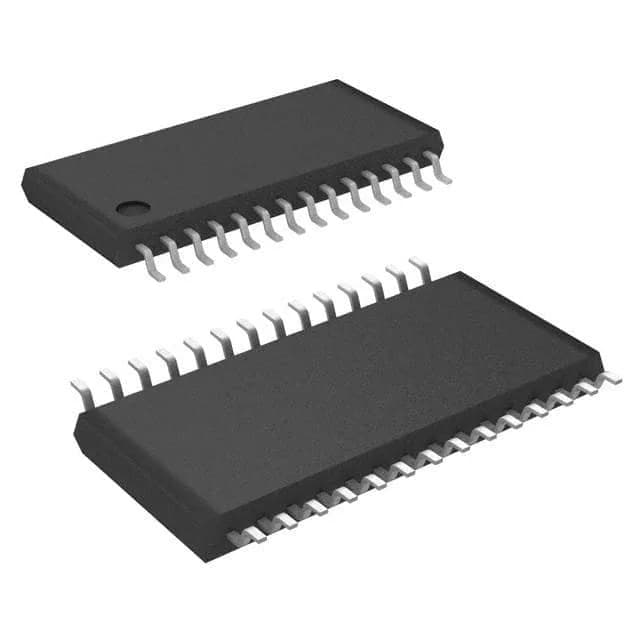

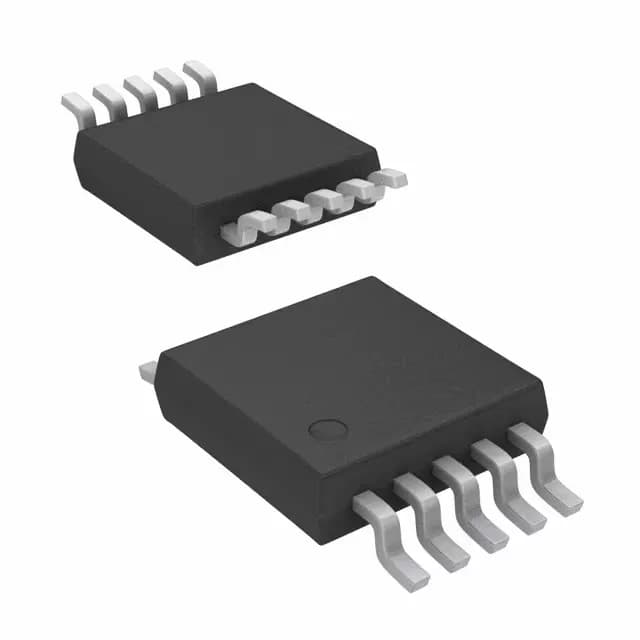

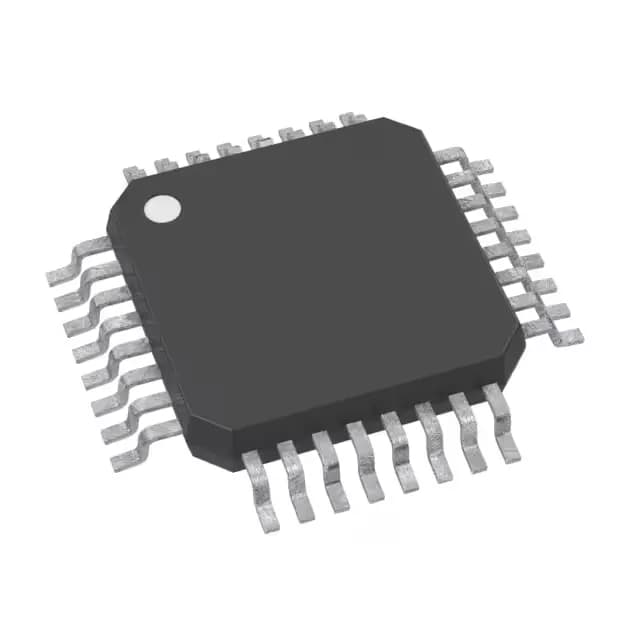

| Parameter | MS51FC0AE | MS51BA9AE | MS51EC0AE | MS51FB9AE | MS51PC0AE | MS51TC0AE |
|---|---|---|---|---|---|---|
| Case | 20-TSSOP (0.173\", 4.40mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 28-TSSOP (0.173\", 4.40mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 32-LQFP | 20-WFQFN Exposed Pad |
| Data converters | A/D 10x12b SAR | A/D 4x12b SAR | A/D 15x12b SAR | A/D 8x12b SAR | A/D 15x12b SAR | A/D 15x12b SAR |
| Number of i (O) | 18 | 8 | 26 | 18 | 30 | 30 |
| Operating temperature | -40°C ~ 105°C (TA) | -40°C~105°C(TA) | -40°C~105°C(TA) | -40°C~105°C(TA) | -40°C~105°C(TA) | -40°C~105°C(TA) |
| Package | Tube | Tube | Tube | Tube | Tray | Tray |
| Program memory size | 32KB (32K x 8) | 8KB (8K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| RAM size | 2K x 8 | 1K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 2K x 8 |
Shared specifications
- Connectivity
- I²C, SPI, UART/USART
- Core processor
- 8051
- Core size
- 8-Bit
- EEPROM size
- -
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Peripherals
- Brown-out Detect/Reset, LVR, POR, PWM, WDT
- Program memory type
- FLASH
- Speed
- 24MHz
- Voltage - supply (Vcc (Vdd))
- 2.4V ~ 5.5V
