WeEn Semiconductors TYN3 Series

4 variants · WeEn Semiconductors

About the WeEn Semiconductors WeEn Semiconductors TYN3 Series series

The WeEn Semiconductors WeEn Semiconductors TYN3 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - on state (It (AV)) of 19 A, current - on state (It (RMS)) of 30 A and mounting type of Through Hole. Variants differ by case, current - gate trigger (Igt) and current - hold (Ih), so you can match the exact case your application requires using the selection guide below. All listed WeEn Semiconductors TYN3 Series part numbers are active and orderable.

Select a variant by

Case: TO-220-3 · TO-220-3 Isolated Tab
Current - gate trigger (Igt): 10 mA · 15 mA
Current - hold (Ih): 40 mA · 60 mA
Current - non rep. surge 50, 60Hz: 350A, 385A · 360A, 396A
Current - off state: 1 mA · 10 µA
Voltage - off state: 600 V · 800 V

Variant comparison

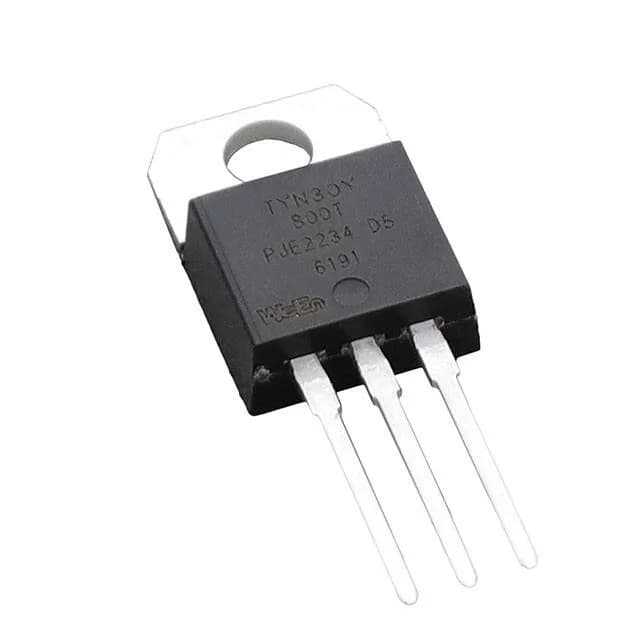

Parameter	TYN30-600TFQ	TYN30-800TQ	TYN30Y-600TFQ	TYN30Y-800TQ
Case	TO-220-3	TO-220-3	TO-220-3 Isolated Tab	TO-220-3 Isolated Tab
Current - gate trigger (Igt)	10 mA	15 mA	10 mA	15 mA
Current - hold (Ih)	40 mA	60 mA	40 mA	60 mA
Current - non rep. surge 50, 60Hz	360A, 396A	350A, 385A	360A, 396A	350A, 385A
Current - off state	10 µA	1 mA	10 µA	1 mA
Voltage - off state	600 V	800 V	600 V	800 V

Shared specifications

Current - on state (It (AV)): 19 A
Current - on state (It (RMS)): 30 A
Mounting type: Through Hole
Operating temperature: 150°C(TJ)
Package: Tube
SCR type: Standard Recovery
Voltage - gate trigger (Vgt): 1 V
Voltage - on state (Vtm): 1.5 V

Request a quote on any WeEn Semiconductors TYN3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
