BT151-500RT,127
WeEn Semiconductors
TubeStandard RecoveryThrough Hole
Ref. price$0.6900
Lead time on requestGet quote ›
WeEn Semiconductors BT15 Series
3 variants · WeEn Semiconductors
About the WeEn Semiconductors WeEn Semiconductors BT15 Series series
The WeEn Semiconductors WeEn Semiconductors BT15 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common operating temperature of -40°C ~ 125°C, SCR type of Standard Recovery and voltage - gate trigger (Vgt) of 1.5 V. Variants differ by case, current - gate trigger (Igt) and current - hold (Ih), so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- TO-220-3 · TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Current - gate trigger (Igt)
- 15 mA · 32 mA
- Current - hold (Ih)
- 20 mA · 60 mA
- Current - non rep. surge 50, 60Hz
- 120A, 132A · 200A, 220A
- Current - off state
- 1 mA · 500 µA
- Current - on state (It (AV))
- 8 A · 13 A
- Current - on state (It (RMS))
- 12.5 A · 20 A
- Mounting type
- Surface Mount · Through Hole
Variant comparison

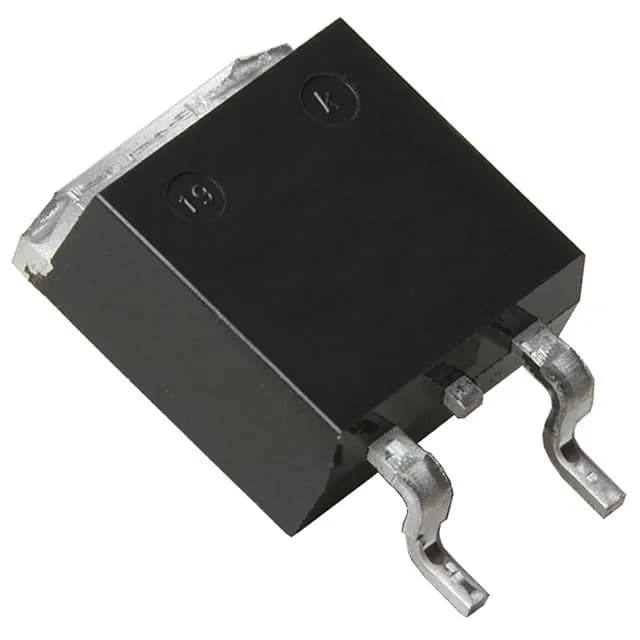

| Parameter | BT151-500RT,127 | BT152B-400R,118 |
|---|---|---|
| Case | TO-220-3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Current - gate trigger (Igt) | 15 mA | 32 mA |
| Current - hold (Ih) | 20 mA | 60 mA |
| Current - non rep. surge 50, 60Hz | 120A, 132A | 200A, 220A |
| Current - off state | 500 µA | 1 mA |
| Current - on state (It (AV)) | 8 A | 13 A |
| Current - on state (It (RMS)) | 12.5 A | 20 A |
| Mounting type | Through Hole | Surface Mount |
Shared specifications
- Operating temperature
- -40°C ~ 125°C
- SCR type
- Standard Recovery
- Voltage - gate trigger (Vgt)
- 1.5 V
- Voltage - on state (Vtm)
- 1.75 V
Request a quote on any WeEn Semiconductors BT15 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the WeEn Semiconductors WeEn Semiconductors BT15 Series variants differ?
- WeEn Semiconductors BT15 Series part numbers differ by case, current - gate trigger (Igt), current - hold (Ih) and current - non rep. surge 50, 60Hz. Use the selection guide above to pick by case.
- How many WeEn Semiconductors WeEn Semiconductors BT15 Series part numbers are listed?
- 3 WeEn Semiconductors WeEn Semiconductors BT15 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for WeEn Semiconductors WeEn Semiconductors BT15 Series?
- Request a quote (RFQ) for any WeEn Semiconductors BT15 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
