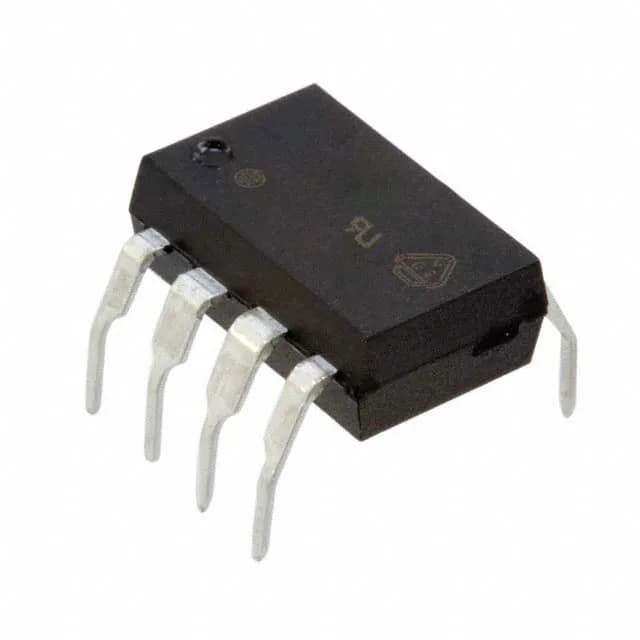

IL300-DEFG-X006
Vishay Semiconductor Opto Division
TubeDCPhotovoltaic, Linearized
Ref. price$4.9600
Lead time on requestGet quote ›
Vishay IL30 Series
8 variants · Vishay
About the Vishay Vishay IL30 Series series
The Vishay Vishay IL30 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 60 mA, current - output (Channel) of 70µA (Typ) and current transfer ratio of -. Variants differ by case, mounting type and package, so you can match the exact case your application requires using the selection guide below. All listed Vishay IL30 Series part numbers are active and orderable.
Select a variant by
- Case
- 6-SMD, Gull Wing · 8-DIP (0.400\", 10.16mm) · 8-SMD, Gull Wing
- Mounting type
- Surface Mount · Through Hole
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tube
Variant comparison
| Parameter | IL300-DEFG-X006 | IL300-DEFG-X009T | IL300-DEFG-X016 | IL300-DEFG-X017T | IL300-EF-X007T | IL300-EF-X017T |
|---|---|---|---|---|---|---|
| Case | 8-DIP (0.400\", 10.16mm) | 6-SMD, Gull Wing | 8-DIP (0.400\", 10.16mm) | 8-SMD, Gull Wing | 8-SMD, Gull Wing | 8-SMD, Gull Wing |
| Mounting type | Through Hole | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Package | Tube | Tape & Reel (TR) Cut Tape (CT) | Tube | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Current - DC forward (If)
- 60 mA
- Current - output (Channel)
- 70µA (Typ)
- Current transfer ratio
- -
- Input type
- DC
- Number of channels
- 1
- Operating temperature
- -55°C ~ 100°C
- Output type
- Photovoltaic, Linearized
- Rise (Fall time)
- 1µs, 1µs
- Turn on (Turn off time)
- -
- Vce saturation
- -
- Voltage - forward (Vf)
- 1.25V
- Voltage - isolation
- 5300Vrms
Request a quote on any Vishay IL30 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Vishay Vishay IL30 Series variants differ?
- Vishay IL30 Series part numbers differ by case, mounting type and package. Use the selection guide above to pick by case.
- How many Vishay Vishay IL30 Series part numbers are listed?
- 8 Vishay Vishay IL30 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Vishay Vishay IL30 Series?
- Request a quote (RFQ) for any Vishay IL30 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
