H11A1-X009T
Vishay Semiconductor Opto Division
Tape & Reel (TR); Cut Tape (CT)-55°C~100°CDC
Ref. price$1.0800
Lead time on requestGet quote ›
Vishay H11A Series
3 variants · Vishay
About the Vishay Vishay H11A Series series
The Vishay Vishay H11A Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 60 mA, current transfer ratio of - and number of channels of 1. Variants differ by case, current - output (Channel) and input type, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Vishay H11A Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 6-DIP (0.300\", 7.62mm) · 6-SMD, Gull Wing
- Current - output (Channel)
- - · 50mA
- Input type
- AC, DC · DC
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 100°C · -55°C~100°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Turn on (Turn off time)
- - · 3µs, 3µs
- Voltage - forward (Vf)
- 1.1V · 1.2V
Variant comparison

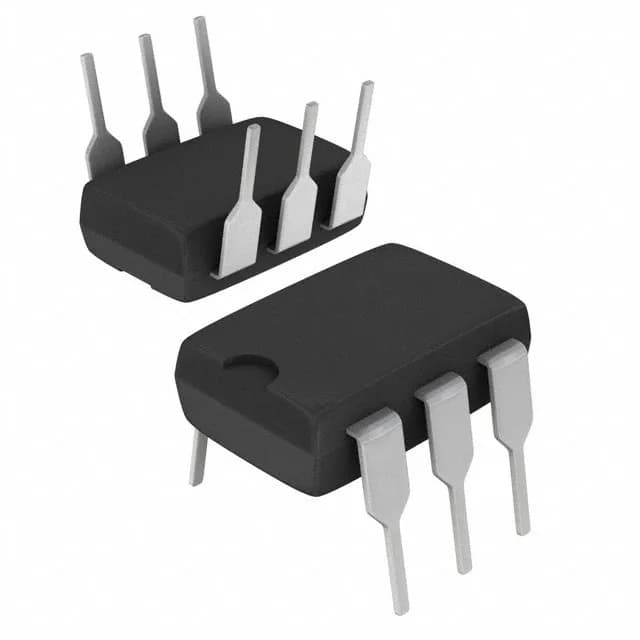

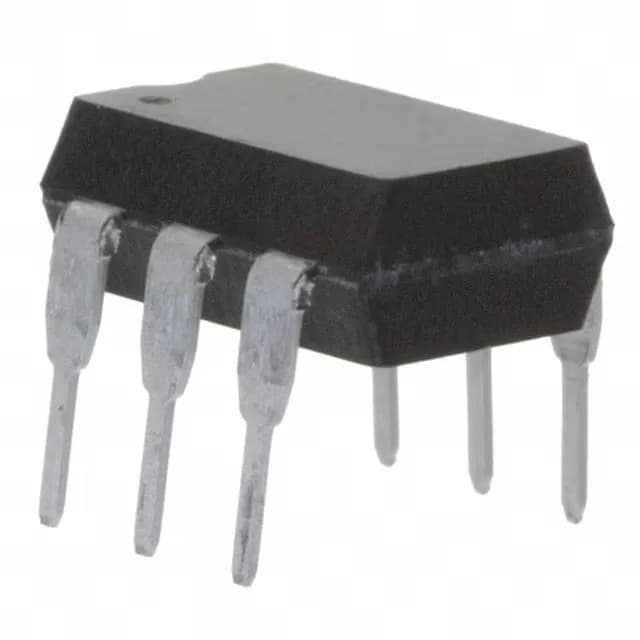

| Parameter | H11A1-X009T | H11AA1 | H11AA1-X001 |
|---|---|---|---|
| Case | 6-SMD, Gull Wing | 6-DIP (0.300\", 7.62mm) | 6-DIP (0.300\", 7.62mm) |
| Current - output (Channel) | 50mA | - | - |
| Input type | DC | AC, DC | AC, DC |
| Mounting type | Surface Mount | Through Hole | Through Hole |
| Operating temperature | -55°C~100°C | -55°C ~ 100°C | -55°C ~ 100°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
| Turn on (Turn off time) | 3µs, 3µs | - | - |
| Voltage - forward (Vf) | 1.1V | 1.2V | 1.2V |
Shared specifications
- Current - DC forward (If)
- 60 mA
- Current transfer ratio
- -
- Number of channels
- 1
- Output type
- Transistor with Base
- Rise (Fall time)
- -
- Vce saturation
- 400mV
- Voltage - isolation
- 5300Vrms
Request a quote on any Vishay H11A Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Vishay Vishay H11A Series variants differ?
- Vishay H11A Series part numbers differ by case, current - output (Channel), input type and mounting type. Use the selection guide above to pick by case.
- How many Vishay Vishay H11A Series part numbers are listed?
- 3 Vishay Vishay H11A Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Vishay Vishay H11A Series?
- Request a quote (RFQ) for any Vishay H11A Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
