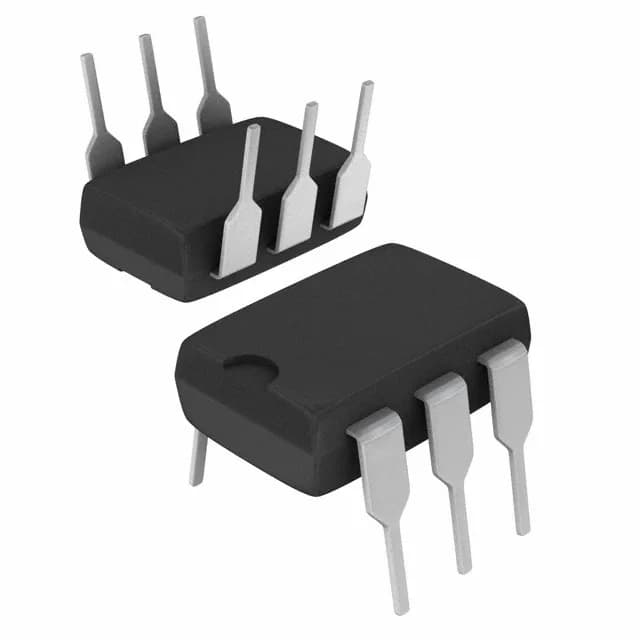

CNY17-1X001
Vishay Semiconductor Opto Division
Tube-55°C~110°CDC
Ref. price$0.6900
Lead time on requestGet quote ›
Vishay CNY17 Series
19 variants · Vishay
About the Vishay Vishay CNY17 Series series
The Vishay Vishay CNY17 Series series groups 19 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 60 mA, current - output (Channel) of 50mA and input type of DC. Variants differ by case, current transfer ratio and mounting type, so you can match the exact case your application requires using the selection guide below. All listed Vishay CNY17 Series part numbers are active and orderable.
Select a variant by
- Case
- 6-DIP (0.300\", 7.62mm) · 6-DIP (0.400\", 10.16mm) · 6-SMD, Gull Wing
- Current transfer ratio
- 80% @ 10mA · 125% @ 10mA · 200% @ 10mA · 320% @ 10mA
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 110°C · -55°C~110°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | CNY17-1X001 | CNY17-1X007 | CNY17-1X007T | CNY17-2X017T | CNY17-3X001 | CNY17-3X006 |
|---|---|---|---|---|---|---|
| Case | 6-DIP (0.300\", 7.62mm) | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-DIP (0.300\", 7.62mm) | 6-DIP (0.400\", 10.16mm) |
| Current transfer ratio | 80% @ 10mA | 80% @ 10mA | 80% @ 10mA | 125% @ 10mA | 200% @ 10mA | 200% @ 10mA |
| Mounting type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Operating temperature | -55°C~110°C | -55°C ~ 110°C | -55°C~110°C | -55°C~110°C | -55°C ~ 110°C | -55°C ~ 110°C |
| Package | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
Shared specifications
- Current - DC forward (If)
- 60 mA
- Current - output (Channel)
- 50mA
- Input type
- DC
- Number of channels
- 1
- Output type
- Transistor with Base
- Rise (Fall time)
- 2µs, 2µs
- Turn on (Turn off time)
- 3µs, 2.3µs
- Vce saturation
- 400mV
- Voltage - forward (Vf)
- 1.39V
- Voltage - isolation
- 5000Vrms
- Voltage - output
- 70V
Request a quote on any Vishay CNY17 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Vishay Vishay CNY17 Series variants differ?
- Vishay CNY17 Series part numbers differ by case, current transfer ratio, mounting type and operating temperature. Use the selection guide above to pick by case.
- How many Vishay Vishay CNY17 Series part numbers are listed?
- 19 Vishay Vishay CNY17 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Vishay Vishay CNY17 Series?
- Request a quote (RFQ) for any Vishay CNY17 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
