4N35-X001
Vishay Semiconductor Opto Division
Tube-55°C~100°CDC
Ref. price$0.7300
Lead time on requestGet quote ›
Vishay 4N35 Series
6 variants · Vishay
About the Vishay Vishay 4N35 Series series
The Vishay Vishay 4N35 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 60 mA, current - output (Channel) of 50mA and current transfer ratio of -. Variants differ by case, mounting type and operating temperature, so you can match the exact case your application requires using the selection guide below. All listed Vishay 4N35 Series part numbers are active and orderable.
Select a variant by
- Case
- 6-DIP (0.300\", 7.62mm) · 6-DIP (0.400\", 10.16mm) · 6-SMD, Gull Wing
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 100°C · -55°C~100°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | 4N35-X001 | 4N35-X006 | 4N35-X007 | 4N35-X007T | 4N35-X009 | 4N35-X017T |
|---|---|---|---|---|---|---|

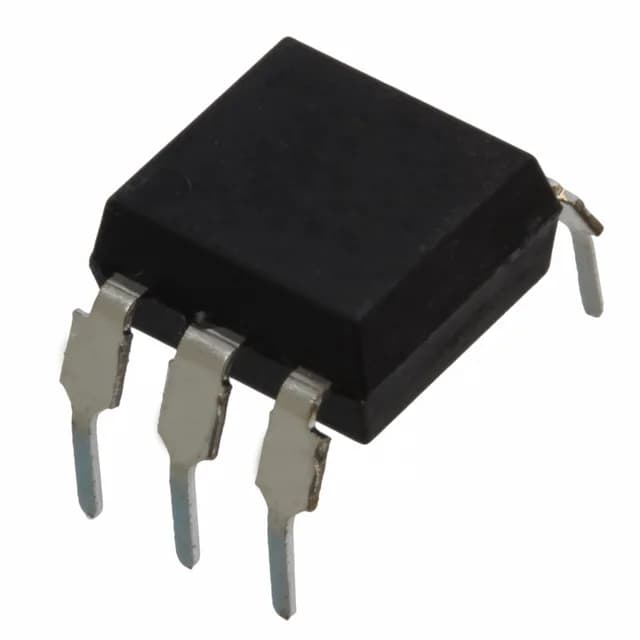

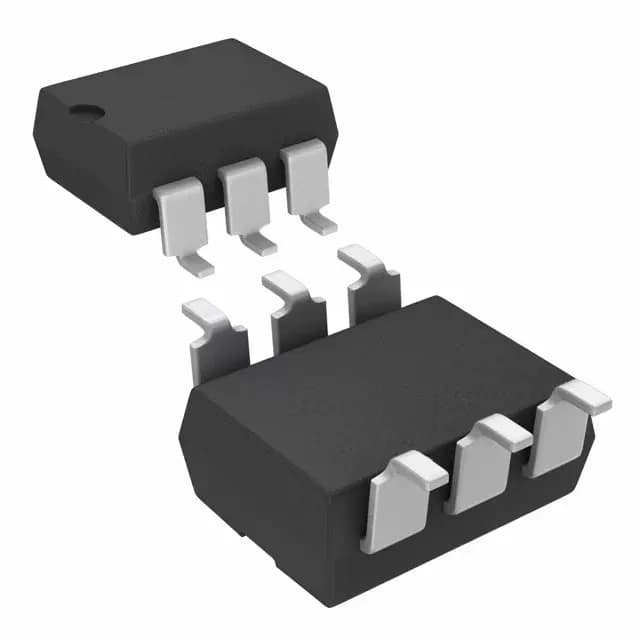

| Case | 6-DIP (0.300\", 7.62mm) | 6-DIP (0.400\", 10.16mm) | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing |
| Mounting type | Through Hole | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating temperature | -55°C~100°C | -55°C~100°C | -55°C~100°C | -55°C~100°C | -55°C~100°C | -55°C ~ 100°C |
| Package | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Current - DC forward (If)
- 60 mA
- Current - output (Channel)
- 50mA
- Current transfer ratio
- -
- Input type
- DC
- Number of channels
- 1
- Output type
- Transistor with Base
- Rise (Fall time)
- -
- Turn on (Turn off time)
- 10µs, 10µs
- Vce saturation
- -
- Voltage - forward (Vf)
- 1.2V
- Voltage - isolation
- 5000Vrms
- Voltage - output
- 30V
Request a quote on any Vishay 4N35 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Vishay Vishay 4N35 Series variants differ?
- Vishay 4N35 Series part numbers differ by case, mounting type, operating temperature and package. Use the selection guide above to pick by case.
- How many Vishay Vishay 4N35 Series part numbers are listed?
- 6 Vishay Vishay 4N35 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Vishay Vishay 4N35 Series?
- Request a quote (RFQ) for any Vishay 4N35 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
