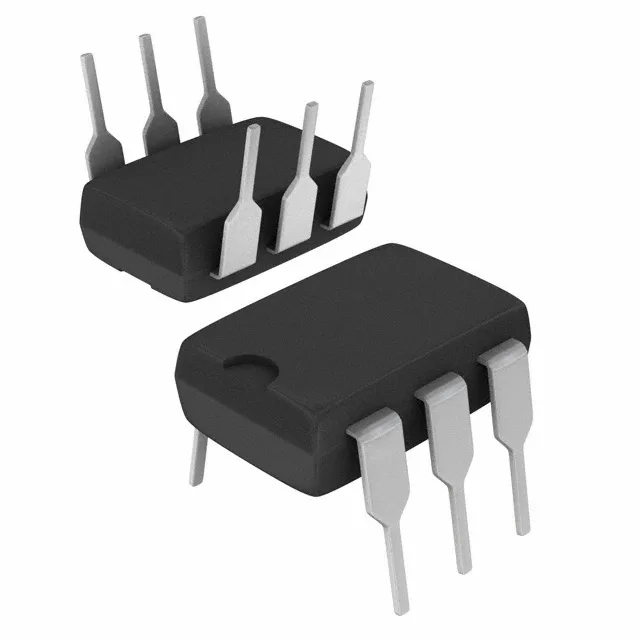

CNY17-1X001
Vishay Semiconductor Opto Division
Through HoleTube-55°C~110°C
Ref. price$0.6900
Lead time on requestGet quote
Vishay Semiconductor Opto Division CNY17 Series
83 variants · Vishay Semiconductor Opto Division
About the Vishay Semiconductor Opto Division CNY17 Series
The Vishay Semiconductor Opto Division CNY17 Series series groups 83 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channels of 1, current - DC forward (If) of 60 mA and current - output (Channel) of 50mA. Variants differ by case, current transfer ratio and mounting, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 6-DIP (0.300\", 7.62mm) · 6-DIP (0.400\", 10.16mm) · 6-SMD, Gull Wing
- Current transfer ratio
- 80% @ 10mA · 125% @ 10mA · 200% @ 10mA
- Mounting
- Surface Mount · Through Hole
- Operating temperature
- -55°C ~ 110°C · -55°C~110°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Shared specifications
- Channels
- 1
- Current - DC forward (If)
- 60 mA
- Current - output (Channel)
- 50mA
- Input type
- DC
- Output type
- Transistor with Base
- Rise (Fall time)
- 2µs, 2µs
- Turn on (Turn off time)
- 3µs, 2.3µs
- Vce saturation
- 400mV
- Voltage - forward (Vf)
- 1.39V
- Voltage - isolation
- 5000Vrms
- Voltage - output
- 70V
Variant comparison

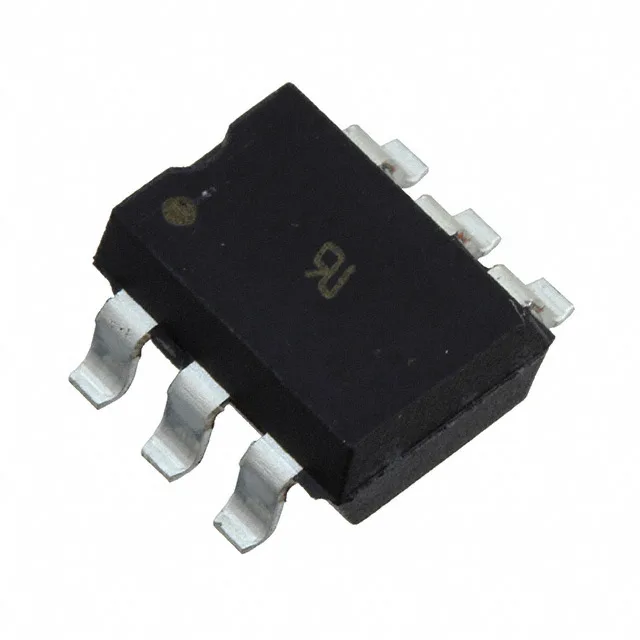

| Parameter | CNY17-1X001 | CNY17-1X006 | CNY17-1X007 | CNY17-1X007T | CNY17-2X017T | CNY17-3 |
|---|---|---|---|---|---|---|
| Case | 6-DIP (0.300\", 7.62mm) | 6-DIP (0.400\", 10.16mm) | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-SMD, Gull Wing | 6-DIP (0.300\", 7.62mm) |
| Current transfer ratio | 80% @ 10mA | 80% @ 10mA | 80% @ 10mA | 80% @ 10mA | 125% @ 10mA | 200% @ 10mA |
| Mounting | Through Hole | Through Hole | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Operating temperature | -55°C~110°C | -55°C ~ 110°C | -55°C ~ 110°C | -55°C~110°C | -55°C~110°C | -55°C ~ 110°C |
| Package | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
Request a quote on any Vishay Semiconductor Opto Division CNY17 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
