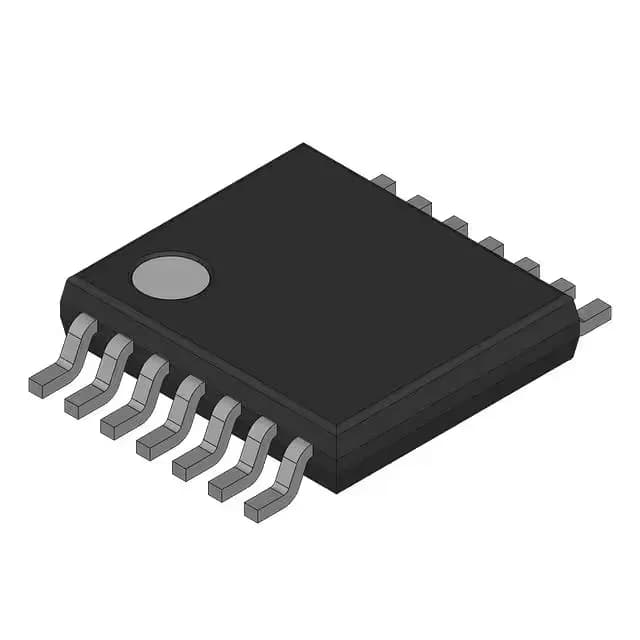

UCC27222PWPR
Texas Instruments
3.7V ~ 20VTape & Reel (TR)-55°C~115°C(TJ)
Ref. price$2.4285
Lead time on requestGet quote ›
Unitrode UCC2 Series
65 variants · Unitrode
About the Unitrode Unitrode UCC2 Series series
The Unitrode Unitrode UCC2 Series series groups 65 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - peak output (Source, sink) of 4A, 4A and number of drivers of 2. Variants differ by case, channel type and driven configuration, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm) · 14-TSSOP (0.173\", 4.40mm Width) Exposed Pad
- Channel type
- Independent · Synchronous
- Driven configuration
- Half-Bridge · Low-Side
- Gate type
- N-Channel MOSFET · N-Channel, P-Channel MOSFET
- Input type
- Inverting, Non-Inverting · Non-Inverting
- Logic voltage - VIL, VIH
- 0.7V, 2.6V · 1V, 2V
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -55°C~115°C(TJ) · -55°C~150°C(TJ) · -40°C ~ 125°C (TJ)
Variant comparison
| Parameter | UCC27222PWPR | UCC27325P | UCC27325PE4 |
|---|---|---|---|
| Case | 14-TSSOP (0.173\", 4.40mm Width) Exposed Pad | 8-DIP (0.300\", 7.62mm) | 8-DIP (0.300\", 7.62mm) |
| Channel type | Synchronous | Independent | Independent |
| Driven configuration | Half-Bridge | Low-Side | Low-Side |
| Gate type | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel, P-Channel MOSFET |
| Input type | Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| Logic voltage - VIL, VIH | 0.7V, 2.6V | 1V, 2V | 1V, 2V |
| Mounting type | Surface Mount | Through Hole | Through Hole |
| Operating temperature | -55°C~115°C(TJ) | -55°C~150°C(TJ) | -40°C ~ 125°C (TJ) |
Shared specifications
- Current - peak output (Source, sink)
- 4A, 4A
- Number of drivers
- 2
