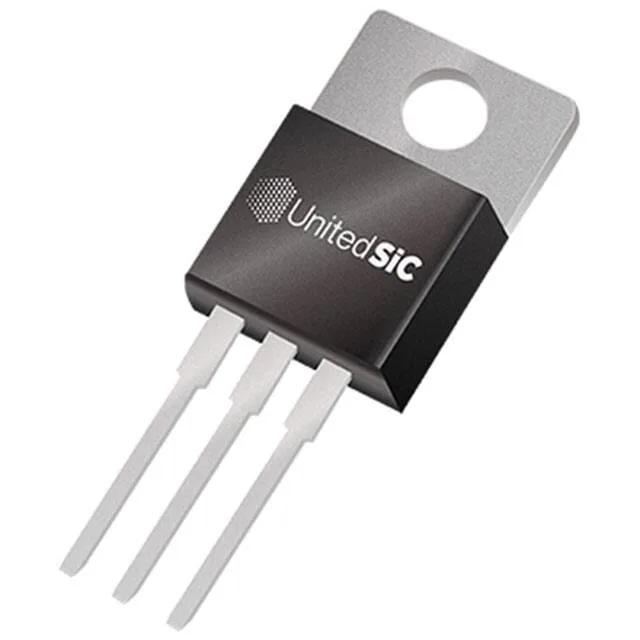

UnitedSiC UJ3C065080T3S
MPNUJ3C065080T3S
Active
MOSFET N-CH 650V 31A TO220-3
$7.92Ref. price · indicative, final on quote
PackagingTO-220-3
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Through Hole |
| Drain to source voltage | 650 V |
| Drive voltage (Max rds on, min rds on) | 12V |
| Current - continuous drain (Id) @ 25°C | 31A (Tc) |
| Power dissipation | 190W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Vgs | ±25V |
| Case | TO-220-3 |
| Vgs(th) (Max) @ id | 6V @ 10mA |
| Rds on (Max) @ id, vgs | 100mOhm @ 20A, 12V |
| Gate charge (Qg) (Max) @ vgs | 51 nC @ 15 V |
| Input capacitance (Ciss) (Max) @ vds | 1500 pF @ 100 V |
