Toshiba Semiconductor SSM3K Series

22 variants · Toshiba Semiconductor

About the Toshiba Semiconductor Toshiba Semiconductor SSM3K Series series

The Toshiba Semiconductor Toshiba Semiconductor SSM3K Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common FET type of N-Channel, mounting type of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: SC-75, SOT-416 · SC-101, SOT-883 · SOT-723
Current - continuous drain (Id) @ 25°C: 100mA (Ta) · 250mA (Ta) · 400mA (Ta)
Drain to source voltage: 20 V · 30 V · 60 V
Drive voltage (Max rds on, min rds on): 1.2V, 4.5V · 2.5V, 4V · 4.5V, 10V
Input capacitance (Ciss) (Max) @ vds: 13.5 pF @ 3 V · 36 pF @ 10 V · 40 pF @ 10 V
Operating temperature: -55°C ~ 150°C (TJ) · 150°C (TJ)
Power dissipation: 100mW (Ta) · 150mW (Ta) · 500mW (Ta)
Rds on (Max) @ id, vgs: 1.1Ohm @ 150mA, 4.5V · 1.5Ohm @ 100mA, 10V · 3.6Ohm @ 10mA, 4V

Variant comparison

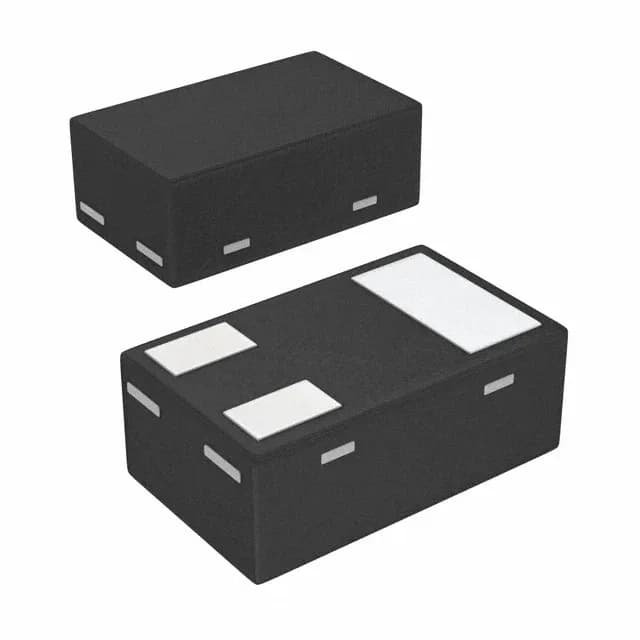

Parameter	SSM3K15AFS,LF	SSM3K15AMFV,L3F	SSM3K35CTC,L3F	SSM3K72KCT,L3F
Case	SC-75, SOT-416	SOT-723	SC-101, SOT-883	SC-101, SOT-883
Current - continuous drain (Id) @ 25°C	100mA (Ta)	100mA (Ta)	250mA (Ta)	400mA (Ta)
Drain to source voltage	30 V	30 V	20 V	60 V
Drive voltage (Max rds on, min rds on)	2.5V, 4V	2.5V, 4V	1.2V, 4.5V	4.5V, 10V
Input capacitance (Ciss) (Max) @ vds	13.5 pF @ 3 V	13.5 pF @ 3 V	36 pF @ 10 V	40 pF @ 10 V
Operating temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	-55°C ~ 150°C (TJ)
Power dissipation	100mW (Ta)	150mW (Ta)	500mW (Ta)	500mW (Ta)
Rds on (Max) @ id, vgs	3.6Ohm @ 10mA, 4V	3.6Ohm @ 10mA, 4V	1.1Ohm @ 150mA, 4.5V	1.5Ohm @ 100mA, 10V

Shared specifications

FET type: N-Channel
Mounting type: Surface Mount
Package: Tape & Reel (TR); Cut Tape (CT)
Technology: MOSFET (Metal Oxide)

Request a quote on any Toshiba Semiconductor SSM3K Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
