Toshiba Semiconductor 2SC6 Series

5 variants · Toshiba Semiconductor

About the Toshiba Semiconductor Toshiba Semiconductor 2SC6 Series series

The Toshiba Semiconductor Toshiba Semiconductor 2SC6 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting type of Surface Mount, operating temperature of 150°C (TJ) and package of Tape & Reel (TR) Cut Tape (CT). Variants differ by case, current - collector (Ic) and current - collector cutoff, so you can match the exact case your application requires using the selection guide below. All listed Toshiba Semiconductor 2SC6 Series part numbers are active and orderable.

Select a variant by

Case: 3-SMD, Flat Leads · SC-101, SOT-883 · SOT-723 · TO-252-3, DPak (2 Leads + Tab), SC-63
Current - collector (Ic): 1 A · 3 A · 100 mA · 150 mA
Current - collector cutoff: 1µA (ICBO) · 100nA (ICBO)
DC current gain (hFE) (Min) @ ic, vce: 120 @ 2mA, 6V · 180 @ 500mA, 2V · 200 @ 2mA, 6V · 400 @ 100mA, 2V
Frequency: - · 60MHz · 150MHz
Power - max: 10 W · 100 mW · 150 mW · 500 mW
Vce saturation (Max) @ ib, ic: 120mV @ 6mA, 300mA · 250mV @ 10mA, 100mA · 500mV @ 100mA, 1A
Voltage - collector emitter breakdown: 50 V · 80 V

Variant comparison

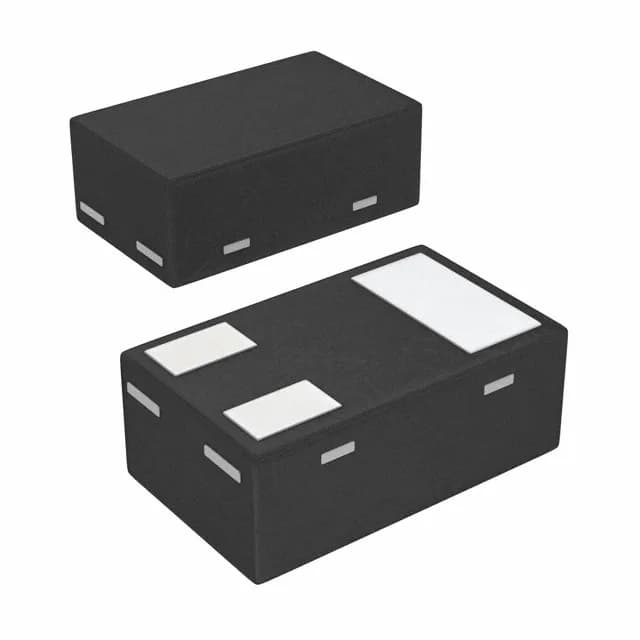

Parameter	2SC6026CT-GR,L3F	2SC6026MFVGR,L3F	2SC6026MFV-Y,L3F	2SC6076(TE16L1,NV)	2SC6135,LF
Case	SC-101, SOT-883	SOT-723	SOT-723	TO-252-3, DPak (2 Leads + Tab), SC-63	3-SMD, Flat Leads
Current - collector (Ic)	100 mA	150 mA	150 mA	3 A	1 A
Current - collector cutoff	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	1µA (ICBO)	100nA (ICBO)
DC current gain (hFE) (Min) @ ic, vce	200 @ 2mA, 6V	200 @ 2mA, 6V	120 @ 2mA, 6V	180 @ 500mA, 2V	400 @ 100mA, 2V
Frequency	60MHz	60MHz	60MHz	150MHz	-
Power - max	100 mW	150 mW	150 mW	10 W	500 mW
Vce saturation (Max) @ ib, ic	250mV @ 10mA, 100mA	250mV @ 10mA, 100mA	250mV @ 10mA, 100mA	500mV @ 100mA, 1A	120mV @ 6mA, 300mA
Voltage - collector emitter breakdown	50 V	50 V	50 V	80 V	50 V

Shared specifications

Mounting type: Surface Mount
Operating temperature: 150°C (TJ)
Package: Tape & Reel (TR) Cut Tape (CT)
Transistor type: NPN

Request a quote on any Toshiba Semiconductor 2SC6 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
