UCC27200ADRMT
Texas Instruments
8V ~ 17VTape & Reel (TR); Cut Tape (CT)-40°C~140°C(TJ)
Ref. price$3.3000
Lead time on requestGet quote ›
Texas Instruments UCC2 Series
170 variants · Texas Instruments
About the Texas Instruments Texas Instruments UCC2 Series series
The Texas Instruments Texas Instruments UCC2 Series series groups 170 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount. Variants differ by case, operating temperature and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-VDFN Exposed Pad · 10-VFDFN Exposed Pad · 10-VFDFN Exposed Pad, 9 Leads · 10-WDFN Exposed Pad
- Operating temperature
- -40°C ~ 125°C · -40°C~125°C · -40°C~140°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage
- 5.5V ~ 16V · 8V ~ 16V · 8V ~ 17V
- Channel type
- Independent · Synchronous
- Current - peak output (Source, sink)
- 2.5A, 3.5A · 3A, 3A · 4A, 4A
- Logic voltage - VIL, VIH
- 0.8V, 2.5V · 0.9V, 2.4V · 1.3V, 1.9V · 1.3V, 2.4V · 2.4V, 5.8V · 3V, 8V
Variant comparison

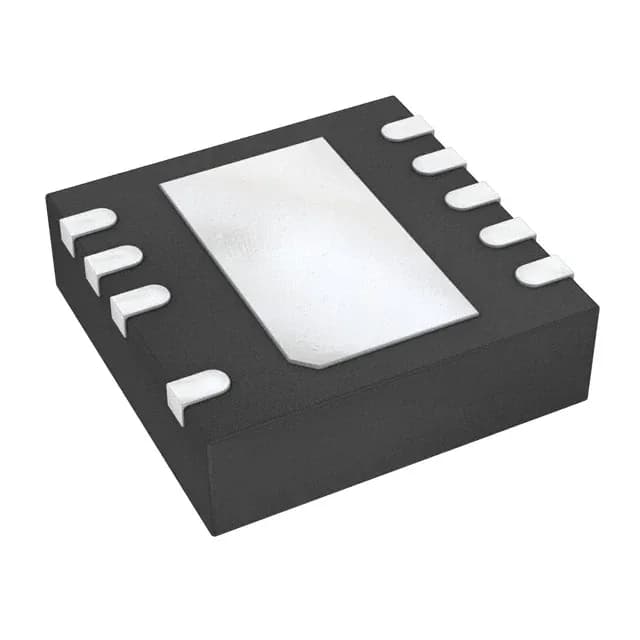

| Parameter | UCC27200ADRMT | UCC27200DR | UCC27201ADRCT | UCC27201ADRMR | UCC27201ADRMT | UCC27201D |
|---|---|---|---|---|---|---|
| Case | 8-VDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 10-VFDFN Exposed Pad, 9 Leads | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) |
| Operating temperature | -40°C~140°C(TJ) | -40°C~140°C(TJ) | -40°C~140°C(TJ) | -40°C~140°C(TJ) | -40°C~140°C(TJ) | -40°C~140°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
| Voltage | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V | 8V ~ 17V |
| Channel type | Independent | Independent | Independent | Independent | Independent | Independent |
| Current - peak output (Source, sink) | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A | 3A, 3A |
| Logic voltage - VIL, VIH | 3V, 8V | 3V, 8V | 0.8V, 2.5V | 0.8V, 2.5V | 0.8V, 2.5V | 0.8V, 2.5V |
Shared specifications
- Mounting type
- Surface Mount
Request a quote on any Texas Instruments UCC2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments UCC2 Series variants differ?
- Texas Instruments UCC2 Series part numbers differ by case, operating temperature, package and voltage. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments UCC2 Series part numbers are listed?
- 170 Texas Instruments Texas Instruments UCC2 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments UCC2 Series?
- Request a quote (RFQ) for any Texas Instruments UCC2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
