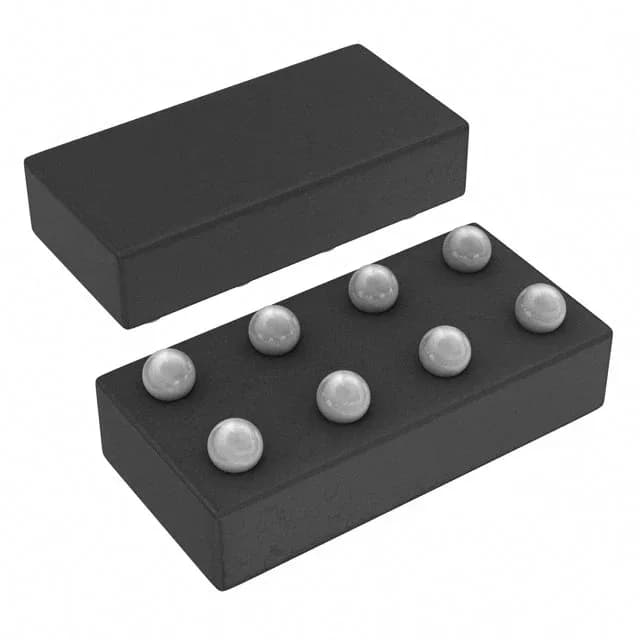

TPS628600YCHR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)-40°C~125°C(TJ)1.5MHz
Ref. price$1.4000
Lead time on requestGet quote ›
Texas Instruments TPS62 Series
231 variants · Texas Instruments
About the Texas Instruments Texas Instruments TPS62 Series series
The Texas Instruments Texas Instruments TPS62 Series series groups 231 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common function of Step-Down, mounting type of Surface Mount and number of outputs of 1. Variants differ by case, current - output and frequency, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 10-PowerTFSOP, 10-MSOP (0.118\", 3.00mm Width) · 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) · 10-VFDFN Exposed Pad
- Current - output
- 1.2A · 600mA
- Frequency
- 1.25MHz · 750kHz
- Output type
- Adjustable · Fixed
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Voltage - input
- 5.5V · 6V
- Voltage - output
- - · 5.5V · 6V
- Voltage - output (Min (Fixed))
- 0.7V · 0.8V · 1V · 1.2V · 1.5V · 1.8V · 2.5V · 3.3V
Variant comparison
| Parameter | TPS62000DGS | TPS62002DGS | TPS62003DGS | TPS62003DGSR | TPS62004DGS | TPS62005DGSR |
|---|---|---|---|---|---|---|
| Case | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118\", 3.00mm Width) |
| Current - output | 600mA | 600mA | 600mA | 600mA | 600mA | 600mA |
| Frequency | 750kHz | 750kHz | 750kHz | 750kHz | 750kHz | 750kHz |
| Output type | Adjustable | Fixed | Fixed | Fixed | Fixed | Fixed |
| Package | Tube | Tube | Tube | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Voltage - input | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - output | 5.5V | - | - | - | - | - |
| Voltage - output (Min (Fixed)) | 0.8V | 1V | 1.2V | 1.2V | 1.5V | 1.8V |
Shared specifications
- Function
- Step-Down
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Operating temperature
- -40°C~85°C(TA)
- Output configuration
- Positive
- Synchronous rectifier
- Yes
- Topology
- Buck
Request a quote on any Texas Instruments TPS62 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments TPS62 Series variants differ?
- Texas Instruments TPS62 Series part numbers differ by case, current - output, frequency and output type. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments TPS62 Series part numbers are listed?
- 231 Texas Instruments Texas Instruments TPS62 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments TPS62 Series?
- Request a quote (RFQ) for any Texas Instruments TPS62 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
