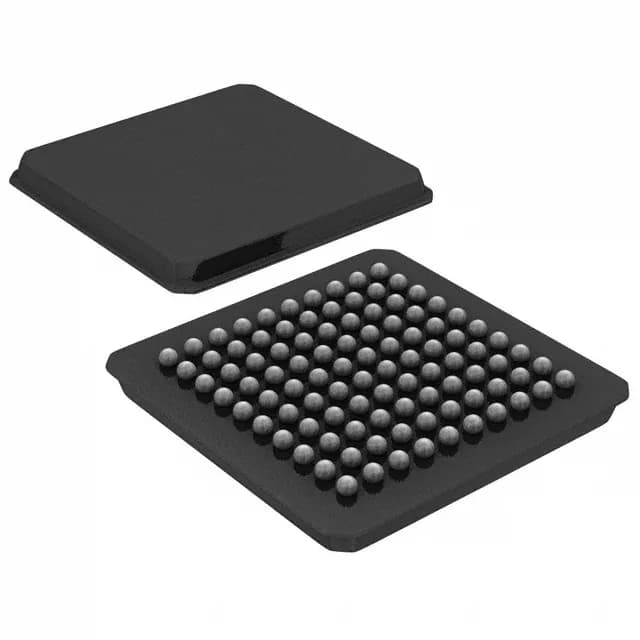

TMS320F28015NMFA
Texas Instruments
1.71V ~ 1.89VTray-40°C~85°C(TA)
Ref. price$9.8800
Lead time on requestGet quote ›
Texas Instruments TMS3 Series
119 variants · Texas Instruments
About the Texas Instruments Texas Instruments TMS3 Series series
The Texas Instruments Texas Instruments TMS3 Series series groups 119 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common core processor of C28x, core size of 32-Bit Single-Core and EEPROM size of -. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 38-TSSOP (0.240\", 6.10mm Width) · 48-LQFP · 100-LFBGA · 100-LQFP
- Connectivity
- CANbus, I²C, SCI, SPI, UART/USART · I²C, SCI, SPI, UART/USART
- Data converters
- A/D 7x12b · A/D 8x12b · A/D 13x12b · A/D 16x12b
- Number of i (O)
- 20 · 22 · 35
- Operating temperature
- -40°C ~ 125°C (TA) · -40°C~85°C(TA) · -40°C~105°C(TA) · -40°C~125°C(TA)
- Package
- Tray · Tube
- Peripherals
- Brown-out Detect/Reset, POR, PWM, WDT · POR, PWM, WDT
- Program memory size
- 32KB (16K x 16) · 64KB (32K x 16)
Variant comparison

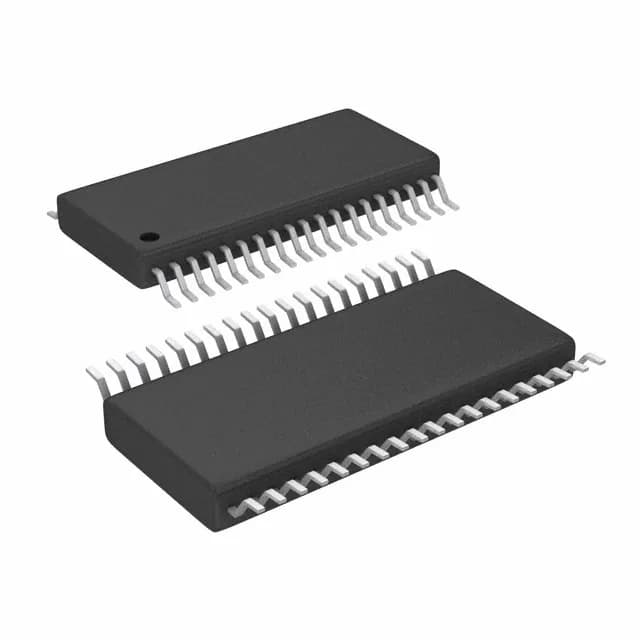

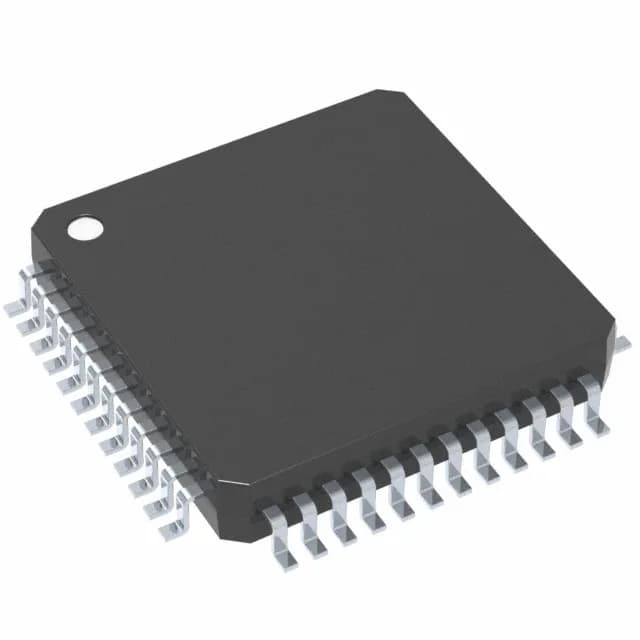

| Parameter | TMS320F28015NMFA | TMS320F28015PZA | TMS320F2801PZA-60 | TMS320F28021DAS | TMS320F28022PTT | TMS320F28023DAS |
|---|---|---|---|---|---|---|
| Case | 100-LFBGA | 100-LQFP | 100-LQFP | 38-TSSOP (0.240\", 6.10mm Width) | 48-LQFP | 38-TSSOP (0.240\", 6.10mm Width) |
| Connectivity | CANbus, I²C, SCI, SPI, UART/USART | I²C, SCI, SPI, UART/USART | CANbus, I²C, SCI, SPI, UART/USART | I²C, SCI, SPI, UART/USART | I²C, SCI, SPI, UART/USART | I²C, SCI, SPI, UART/USART |
| Data converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 7x12b | A/D 13x12b | A/D 7x12b |
| Number of i (O) | 35 | 35 | 35 | 20 | 22 | 20 |
| Operating temperature | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~85°C(TA) | -40°C~125°C(TA) | -40°C~105°C(TA) | -40°C ~ 125°C (TA) |
| Package | Tray | Tray | Tray | Tray | Tray | Tube |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Program memory size | 32KB (16K x 16) | 32KB (16K x 16) | 32KB (16K x 16) | 64KB (32K x 16) | 32KB (16K x 16) | 64KB (32K x 16) |
Shared specifications
- Core processor
- C28x
- Core size
- 32-Bit Single-Core
- EEPROM size
- -
- Mounting type
- Surface Mount
- Oscillator type
- Internal
- Program memory type
- FLASH
Request a quote on any Texas Instruments TMS3 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments TMS3 Series variants differ?
- Texas Instruments TMS3 Series part numbers differ by case, connectivity, data converters and number of i (O). Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments TMS3 Series part numbers are listed?
- 119 Texas Instruments Texas Instruments TMS3 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments TMS3 Series?
- Request a quote (RFQ) for any Texas Instruments TMS3 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
