SN74LVC1G3157DBVR
Texas Instruments
-40°C~85°C(TA)Tape & Reel (TR); Cut Tape (CT)-54dB @ 10MHz
Ref. price$0.5000
Lead time on requestGet quote ›
Texas Instruments SN74 Series
68 variants · Texas Instruments
About the Texas Instruments Texas Instruments SN74 Series series
The Texas Instruments Texas Instruments SN74 Series series groups 68 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount, number of circuits of 1 and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by -3db bandwidth, case and channel capacitance (CS(off), CD(off)), so you can match the exact -3db bandwidth your application requires using the selection guide below.
Select a variant by
- -3db bandwidth
- 300MHz · 340MHz
- Case
- 6-UFDFN · 6-XFBGA, DSBGA · 6-XFDFN · SC-74A, SOT-753 · SOT-23-6 · SOT-553 · SOT-563, SOT-666
- Channel capacitance (CS(off), CD(off))
- 5.2pF · 6pF
- Channel-to-Channel matching (ΔRon)
- - · 100mOhm
- Charge injection
- - · 7pC
- Crosstalk
- - · -54dB @ 10MHz
- Current - leakage (IS(off))
- 1µA · 100nA
- Multiplexer (Demultiplexer circuit)
- 1:1 · 2:1
Variant comparison
| Parameter | SN74LVC1G3157DBVR | SN74LVC1G3157DRLR | SN74LVC1G3157DRYR | SN74LVC1G3157DSFR | SN74LVC1G3157DTBR | SN74LVC1G3157YZPR |
|---|---|---|---|---|---|---|
| -3db bandwidth | 340MHz | 340MHz | 340MHz | 340MHz | 340MHz | 340MHz |

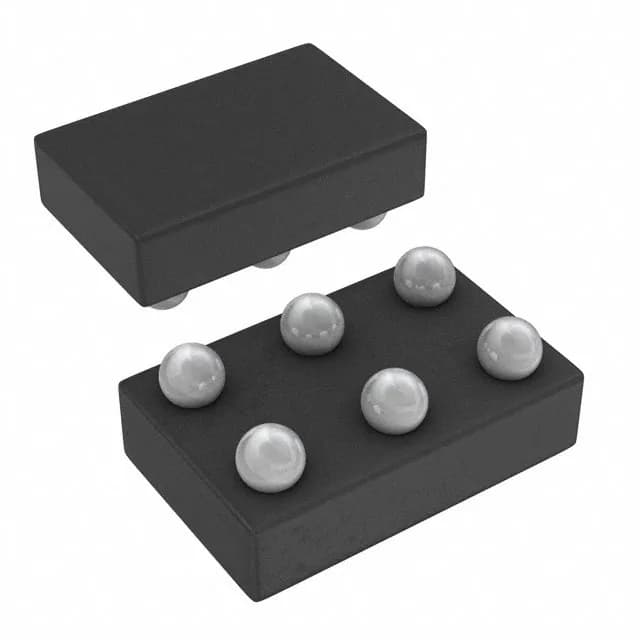

| Case | SOT-23-6 | SOT-563, SOT-666 | 6-UFDFN | 6-XFDFN | 6-XFDFN | 6-XFBGA, DSBGA |
| Channel capacitance (CS(off), CD(off)) | 5.2pF | 5.2pF | 5.2pF | 5.2pF | 5.2pF | 5.2pF |
| Channel-to-Channel matching (ΔRon) | 100mOhm | 100mOhm | 100mOhm | 100mOhm | 100mOhm | 100mOhm |
| Charge injection | 7pC | 7pC | 7pC | 7pC | 7pC | 7pC |
| Crosstalk | -54dB @ 10MHz | -54dB @ 10MHz | -54dB @ 10MHz | -54dB @ 10MHz | -54dB @ 10MHz | -54dB @ 10MHz |
| Current - leakage (IS(off)) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA |
| Multiplexer (Demultiplexer circuit) | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 |
Shared specifications
- Mounting type
- Surface Mount
- Number of circuits
- 1
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Voltage - supply, dual (V±)
- -
- Voltage - supply, single (V+)
- 1.65V ~ 5.5V
Request a quote on any Texas Instruments SN74 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments SN74 Series variants differ?
- Texas Instruments SN74 Series part numbers differ by -3db bandwidth, case, channel capacitance (CS(off), CD(off)) and channel-to-Channel matching (ΔRon). Use the selection guide above to pick by -3db bandwidth.
- How many Texas Instruments Texas Instruments SN74 Series part numbers are listed?
- 68 Texas Instruments Texas Instruments SN74 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments SN74 Series?
- Request a quote (RFQ) for any Texas Instruments SN74 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
