LM3524DM
Texas Instruments
Bulk0°C ~ 125°C (TJ)Step-Up, Step-Down
Ref. price$0.68
Lead time on requestGet quote
Texas Instruments LM35 Discrete Semiconductors Series
4 variants · Texas Instruments
About the Texas Instruments LM35 Discrete Semiconductors Series
The Texas Instruments LM35 Discrete Semiconductors Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by case, I/O channels and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-SOIC (0.154\", 3.90mm Width) · 20-WFBGA, DSBGA · 30-WFBGA, DSBGA
- I/O channels
- 1 · 8
- Operating temperature
- -30°C ~ 85°C (TA) · 0°C ~ 125°C (TJ)
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT)
- Topology
- Buck, Boost · Switched Capacitor (Charge Pump)
- Frequency
- 1.3MHz · 1.33MHz
Shared specifications
- Mounting
- Surface Mount
Variant comparison

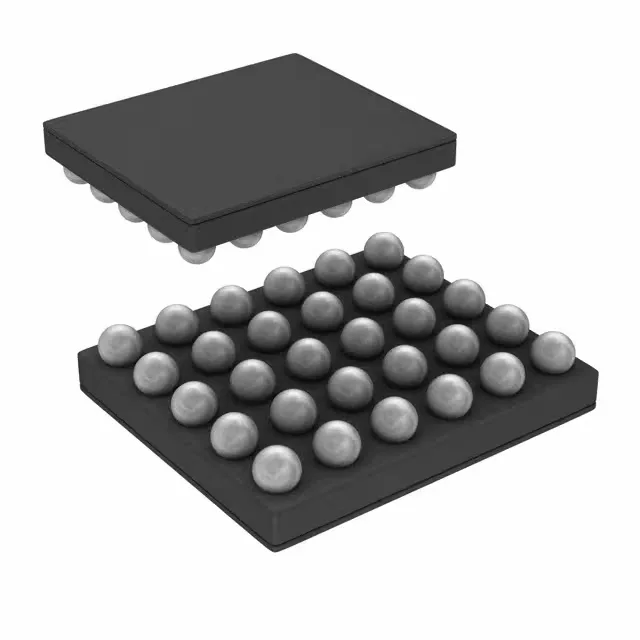

| Parameter | LM3524DM | LM3535TMX/NOPB | LM3538TME/NOPB |
|---|---|---|---|
| Case | 16-SOIC (0.154\", 3.90mm Width) | 20-WFBGA, DSBGA | 30-WFBGA, DSBGA |
| I/O channels | 1 | 8 | 8 |
| Operating temperature | 0°C ~ 125°C (TJ) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Package | Bulk | Bulk | Tape & Reel (TR); Cut Tape (CT) |
| Topology | Buck, Boost | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Frequency | — | 1.33MHz | 1.3MHz |
Request a quote on any Texas Instruments LM35 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
