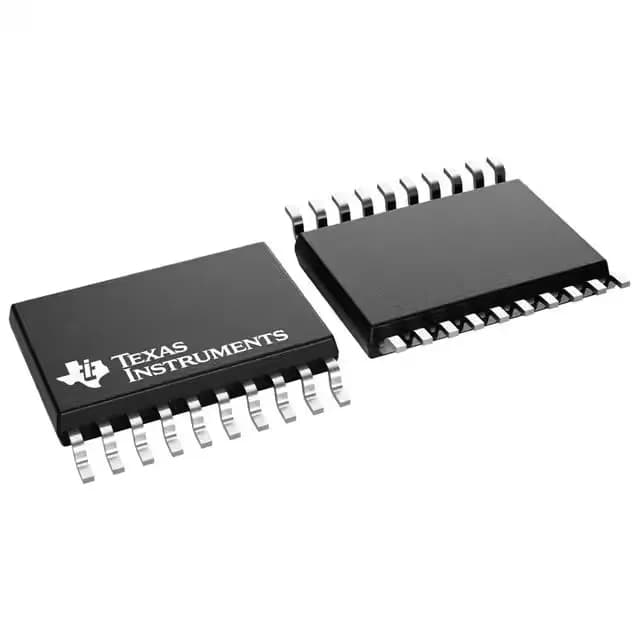

Texas Instruments MSP430G2553IPW8RQ1 — Microcontrollers & Processors (MCU / MPU / DSP)
Texas Instruments

TI MSP430G2553IPW8RQ1 16-bit MCU, 16 MHz, AEC-Q100

MPNMSP430G2553IPW8RQ1
Active

Texas Instruments MSP430G2553IPW8RQ1, Automotive AEC-Q100, MSP430G2 series, 16-Bit MCU, MSP430 CPU16, 16MHz, 16KB Flash, 512 x 8 RAM, 24 I/O, I²C/IrDA/LINbus/SCI/SPI/UART/USART, A/D 8x10b, 1.8V~3.6V, -40°C~85°C, 28-TSSOP.

$2.0620Ref. price · indicative, final on quote
MSP430G2553IPW8RQ1 datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MSP430G2553IPW8RQ1 Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q100, MSP430G2
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.8V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed16MHz
PackageTape & Reel (TR)
RAM size512 x 8
Core size16-Bit
PeripheralsBrown-out Detect/Reset, DMA, POR, PWM, WDT
ConnectivityI²C, IrDA, LINbus, SCI, SPI, UART/USART
Number of i (O)24
Core processorMSP430 CPU16
Case28-TSSOP (0.173\", 4.40mm Width)
Data convertersA/D 8x10b
Program memory size16KB (16K x 8)

Product details

16 MHz core — timing budget for control loops

The 16 MHz clock is the ceiling for instruction throughput. The DMA peripheral can move ADC results to RAM without CPU intervention.

Lifecycle: end-of-life notice — plan the transition

The lifecycle stage for this order code is end-of-life hot. Buyers should secure a lifetime buy quantity or begin qualifying a replacement now.

Memory and I/O — fit for body-control and sensor modules

16 KB of Flash and 512 bytes of RAM place this MCU in the small-footprint tier. The 24 I/O pins are enough for a LIN slave node with a few local sensors.

Connectivity and peripherals

Frequently asked questions

What is the closest pin-compatible alternative to MSP430G2553IPW8RQ1?

The commercial-grade MSP430G2553IPW8 (without the Q1 suffix) is pin-compatible but lacks AEC-Q100 qualification. For automotive designs, a direct AEC-Q100 successor should be identified from the MSP430G2 or MSP430F2 family — no official pin-compatible automotive replacement is listed in this record.

What is MSP430G2553IPW8RQ1's listed speed?

The core runs at 16 MHz.

What is MSP430G2553IPW8RQ1's series qualification?

It is part of the Automotive, AEC-Q100, MSP430G2 series.
