MS560702BA03-50
TE Connectivity Measurement Specialties
1.8V ~ 3.6V±0.022PSI (±0.15kPa)24 b
Ref. price$6.25
Lead time on requestGet quote ›
TE Connectivity Measurement Specialties MS56 Series
3 variants · TE Connectivity Measurement Specialties
About the TE Connectivity Measurement Specialties TE Connectivity Measurement Specialties MS56 Series series
The TE Connectivity Measurement Specialties TE Connectivity Measurement Specialties MS56 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common applications of Board Mount, maximum pressure of 87.02PSI (600kPa) and mounting type of Surface Mount. Variants differ by accuracy, case and operating pressure, so you can match the exact accuracy your application requires using the selection guide below.
Select a variant by
- Accuracy
- ±0.022PSI (±0.15kPa) · ±0.058PSI (±0.4kPa)
- Case
- 4-SMD, No Lead Exposed Pad · 8-SMD
- Operating pressure
- 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) · 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa)
- Output type
- I²C · I²C, SPI
- Voltage
- 1.5V ~ 3.6V · 1.8V ~ 3.6V
Variant comparison

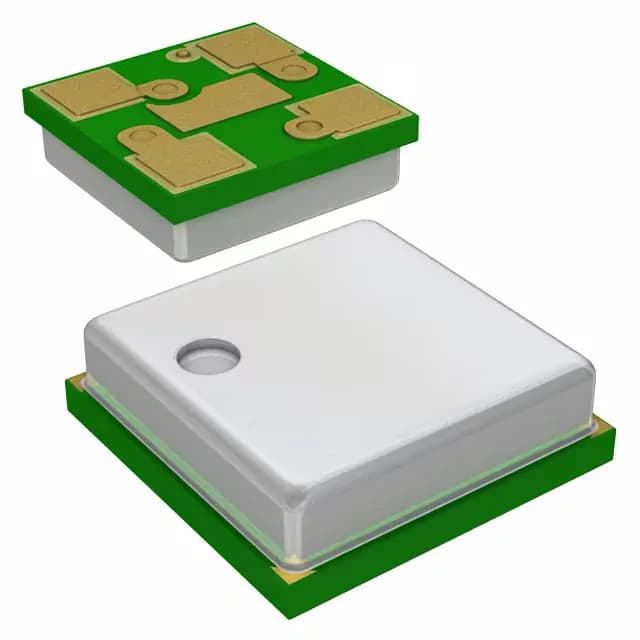

| Parameter | MS560702BA03-50 | MS563702BA03-50 |
|---|---|---|
| Accuracy | ±0.022PSI (±0.15kPa) | ±0.058PSI (±0.4kPa) |
| Case | 8-SMD | 4-SMD, No Lead Exposed Pad |
| Operating pressure | 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) | 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) |
| Output type | I²C, SPI | I²C |
| Voltage | 1.8V ~ 3.6V | 1.5V ~ 3.6V |
Shared specifications
- Applications
- Board Mount
- Maximum pressure
- 87.02PSI (600kPa)
- Mounting type
- Surface Mount
- Operating temperature
- -40°C ~ 85°C
- Output
- 24 b
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Port style
- No Port
- Pressure type
- Absolute
- Termination style
- SMD (SMT) Tab
Request a quote on any TE Connectivity Measurement Specialties MS56 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
