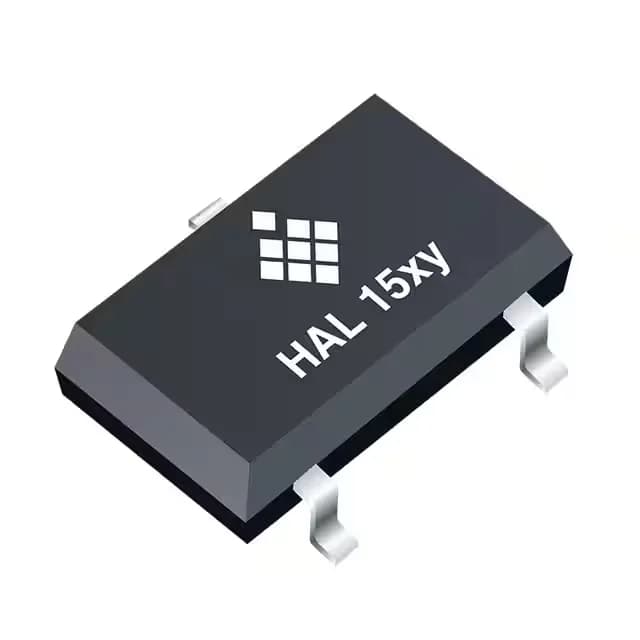

HAL1501SU-A
TDK-Micronas GmbH
-40°C ~ 170°CBipolar SwitchNorth Pole, South Pole
Ref. price$0.84
Lead time on requestGet quote ›
TDK-Micronas GmbH HAL1 Series
20 variants · TDK-Micronas GmbH
About the TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series series
The TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-236-3, SC-59, SOT-23-3, mounting type of Surface Mount and output type of Open Drain. Variants differ by function, operating temperature and sensing range, so you can match the exact function your application requires using the selection guide below.
Select a variant by
- Function
- Bipolar Switch · Latch · Unipolar Switch
- Operating temperature
- -40°C ~ 70°C (TJ) · -40°C ~ 170°C · -40°C ~ 170°C (TJ)
- Sensing range
- 0.4mT Trip, -0.4mT Release · 3.7mT Trip, 5.5mT Release · 13.5mT Trip, -13.5mT Release · 18.9mT Trip, 17.3mT Release
- Polarization
- North Pole, South Pole · South Pole
Variant comparison

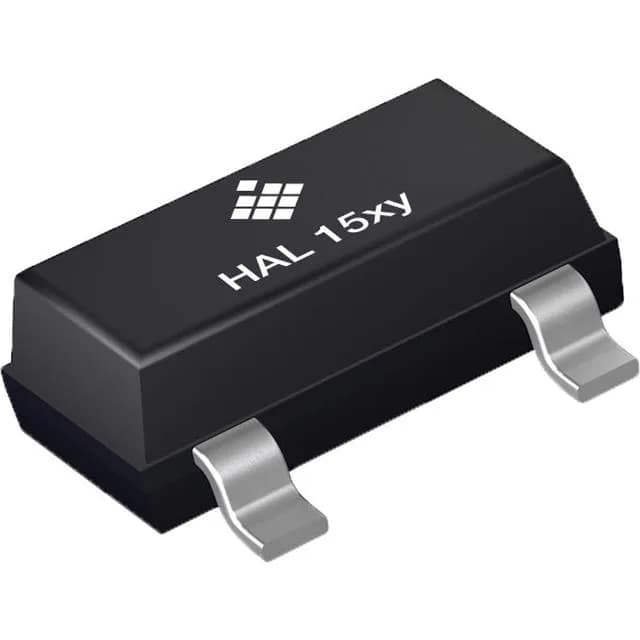

| Parameter | HAL1501SU-A | HAL1505 SU | HAL1506SU-A | HAL1509 SU-A |
|---|---|---|---|---|
| Function | Bipolar Switch | Latch | Unipolar Switch | Unipolar Switch |
| Operating temperature | -40°C ~ 170°C | -40°C ~ 170°C (TJ) | -40°C ~ 70°C (TJ) | -40°C ~ 170°C (TJ) |
| Sensing range | 0.4mT Trip, -0.4mT Release | 13.5mT Trip, -13.5mT Release | 18.9mT Trip, 17.3mT Release | 3.7mT Trip, 5.5mT Release |
| Polarization | North Pole, South Pole | — | South Pole | South Pole |
Shared specifications
- Case
- TO-236-3, SC-59, SOT-23-3
- Mounting type
- Surface Mount
- Output type
- Open Drain
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Technology
- Hall Effect
- Voltage
- 2.7V ~ 24V
Request a quote on any TDK-Micronas GmbH HAL1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series variants differ?
- TDK-Micronas GmbH HAL1 Series part numbers differ by function, operating temperature, sensing range and polarization. Use the selection guide above to pick by function.
- How many TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series part numbers are listed?
- 20 TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TDK-Micronas GmbH TDK-Micronas GmbH HAL1 Series?
- Request a quote (RFQ) for any TDK-Micronas GmbH HAL1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
