VLS252012CX-100M-1
TDK Corporation
VLS-CX-110 µHTape & Reel (TR) Cut Tape (CT)
Ref. price$0.3800
Lead time on requestGet quote

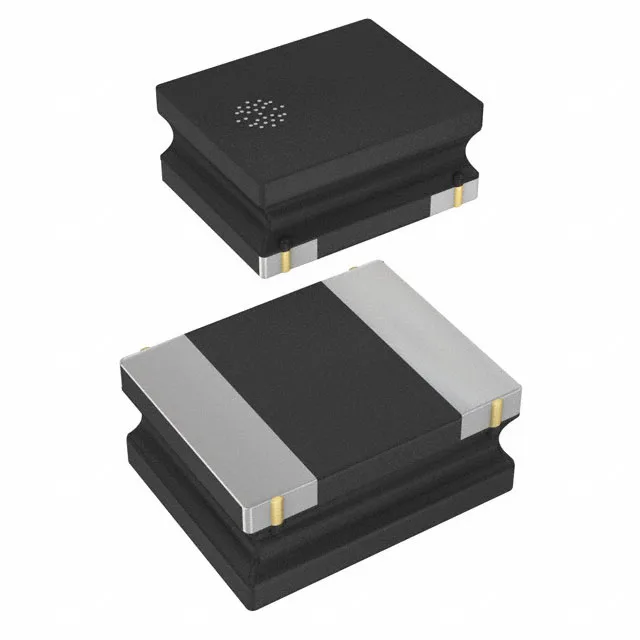

TDK Corporation VLS252012 Series
62 variants · TDK Corporation
About the TDK Corporation VLS252012 Series
The TDK Corporation VLS252012 Series series groups 62 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common frequency - self resonant of -, height - seated of 0.047\" (1.20mm) and inductance frequency - test of 1 MHz. Variants differ by case, current - saturation and current rating, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 1008 (2520 Metric) · Nonstandard
- Current - saturation
- 1.1A · 1.16A · 1.28A · 1.31A · 2.19A · 2.5A · 3.4A · 540mA · 600mA · 790mA · 860mA · 900mA
- Current rating
- 1.24 A · 1.53 A · 2.3 A · 2.75 A · 3 A · 560 mA · 580 mA · 700 mA · 800 mA · 820 mA · 970 mA
- DC resistance
- 1.2Ohm Max · 1.68Ohm Max · 56mOhm Max · 74mOhm Max · 82mOhm Max · 137mOhm Max · 210mOhm Max · 440mOhm Max · 482mOhm Max · 672mOhm Max · 772mOhm Max · 955mOhm Max
- Inductance
- 1 µH · 1.5 µH · 3.3 µH · 4.7 µH · 6.8 µH · 10 µH · 15 µH · 22 µH
- Material - core
- Ferrite · Metal
- Operating temperature
- -40°C ~ 105°C · -40°C~105°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Shared specifications
- Frequency - self resonant
- -
- Height - seated
- 0.047\" (1.20mm)
- Inductance frequency - test
- 1 MHz
- Mounting
- Surface Mount
- Q @ freq
- -
- Ratings
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.098\" L x 0.079\" W (2.50mm x 2.00mm)
- Tolerance
- ±20%
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | VLS252012CX-100M-1 | VLS252012CX-150M-1 | VLS252012CX-1R5M-1 | VLS252012CX-220M-1 | VLS252012CX-3R3M-1 | VLS252012CX-4R7M-1 |
|---|---|---|---|---|---|---|
| Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Current - saturation | 790mA | 600mA | 2.19A | 540mA | 1.31A | 1.1A |
| Current rating | 820 mA | 700 mA | 2.3 A | 560 mA | 1.53 A | 1.24 A |
| DC resistance | 482mOhm Max | 772mOhm Max | 74mOhm Max | 955mOhm Max | 137mOhm Max | 210mOhm Max |
| Inductance | 10 µH | 15 µH | 1.5 µH | 22 µH | 3.3 µH | 4.7 µH |
| Material - core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Request a quote on any TDK Corporation VLS252012 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
