SLF7045T-100M1R3-PF
TDK Corporation
SLF10 µH-40°C~105°C
Ref. price$1.0300
Lead time on requestGet quote

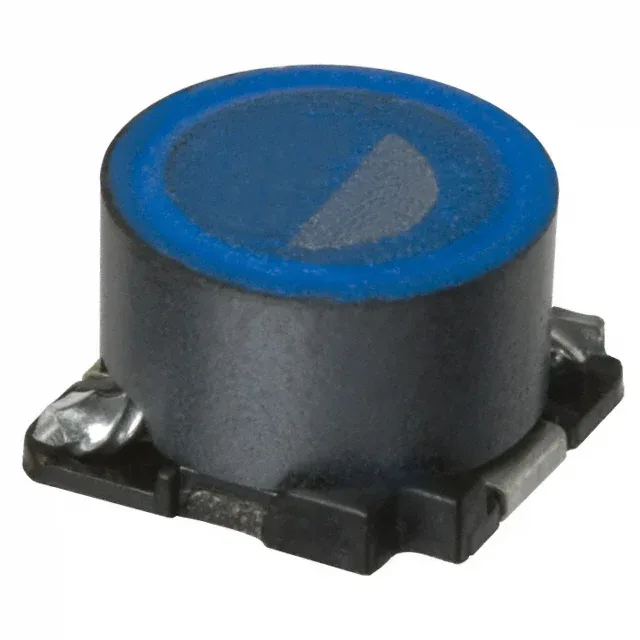

TDK Corporation SLF7045T Series
46 variants · TDK Corporation
About the TDK Corporation SLF7045T Series
The TDK Corporation SLF7045T Series series groups 46 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Nonstandard, frequency - self resonant of - and height - seated of 0.189\" (4.80mm). Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TDK Corporation SLF7045T Series variants and discontinued ones from a single page.
Select a variant by
- Current - saturation
- 1.1A · 1.3A · 1.5A · 1.8A · 140mA · 400mA · 500mA · 600mA
- Current rating
- 1.5 A · 1.53 A · 1.78 A · 1.8 A · 250 mA · 500 mA · 550 mA · 600 mA · 650 mA
- DC resistance
- 2.736Ohm Max · 43.2mOhm Max · 56.4mOhm Max · 62.4mOhm Max · 81.6mOhm Max · 300mOhm Max · 408mOhm Max · 468mOhm Max · 660mOhm Max
- Inductance
- 1 mH · 10 µH · 15 µH · 100 µH · 150 µH
- Inductance frequency - test
- 1 kHz · 100 kHz
- Operating temperature
- -40°C ~ 105°C · -40°C ~ 125°C · -40°C~105°C · -40°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Ratings
- - · AEC-Q200
Shared specifications
- Case
- Nonstandard
- Frequency - self resonant
- -
- Height - seated
- 0.189\" (4.80mm)
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Q @ freq
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.276\" L x 0.276\" W (7.00mm x 7.00mm)
- Tolerance
- ±20%
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | SLF7045T-100M1R3 | SLF7045T-100M1R3-PF | SLF7045T-100M1R8-H | SLF7045T-101MR50-PF | SLF7045T-101MR60-H | SLF7045T-102MR14 |
|---|---|---|---|---|---|---|
| Current - saturation | 1.3A | 1.3A | 1.8A | 500mA | 600mA | 140mA |
| Current rating | 1.78 A | 1.78 A | 1.8 A | 650 mA | 600 mA | 250 mA |
| DC resistance | 43.2mOhm Max | 43.2mOhm Max | 56.4mOhm Max | 300mOhm Max | 468mOhm Max | 2.736Ohm Max |
| Inductance | 10 µH | 10 µH | 10 µH | 100 µH | 100 µH | 1 mH |
| Inductance frequency - test | 1 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 1 kHz |
| Operating temperature | -40°C ~ 105°C | -40°C~105°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | - | - | AEC-Q200 | - | AEC-Q200 | - |
Request a quote on any TDK Corporation SLF7045T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
