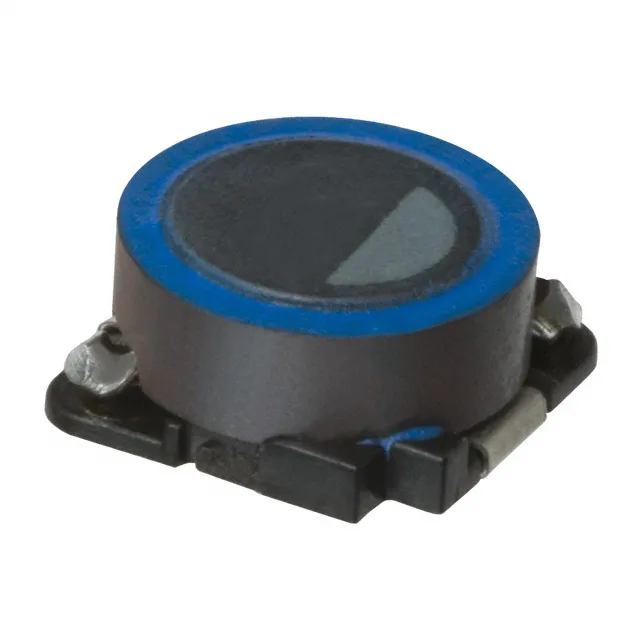

SLF7032T-100M1R4-2PF
TDK Corporation
10 µHTape & Reel (TR); Cut Tape (CT)-40°C~105°C
Ref. price$0.9900
Lead time on requestGet quote
TDK Corporation SLF7032T Series
32 variants · TDK Corporation
About the TDK Corporation SLF7032T Series
The TDK Corporation SLF7032T Series series groups 32 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Nonstandard, current - saturation of - and frequency - self resonant of -. Variants differ by current rating, DC resistance and inductance, so you can match the exact current rating your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TDK Corporation SLF7032T Series variants and discontinued ones from a single page.
Select a variant by
- Current rating
- 1.1 A · 1.4 A · 130 mA · 290 mA · 370 mA · 450 mA · 960 mA
- DC resistance
- 1.26Ohm Max · 5.736Ohm Max · 63.6mOhm Max · 90mOhm Max · 132mOhm Max · 540mOhm Max · 780mOhm Max
- Inductance
- 1 mH · 10 µH · 15 µH · 22 µH · 100 µH · 150 µH · 220 µH
- Inductance frequency - test
- 1 kHz · 100 kHz
- Operating temperature
- -40°C ~ 105°C · -40°C~105°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Shared specifications
- Case
- Nonstandard
- Current - saturation
- -
- Frequency - self resonant
- -
- Height - seated
- 0.134\" (3.40mm)
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Q @ freq
- -
- Ratings
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.276\" L x 0.276\" W (7.00mm x 7.00mm)
- Tolerance
- ±20%
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | SLF7032T-100M1R4-2 | SLF7032T-100M1R4-2PF | SLF7032T-101MR45-2 | SLF7032T-101MR45-2PF | SLF7032T-102MR13-2 | SLF7032T-102MR13-2PF |
|---|---|---|---|---|---|---|
| Current rating | 1.4 A | 1.4 A | 450 mA | 450 mA | 130 mA | 130 mA |
| DC resistance | 63.6mOhm Max | 63.6mOhm Max | 540mOhm Max | 540mOhm Max | 5.736Ohm Max | 5.736Ohm Max |
| Inductance | 10 µH | 10 µH | 100 µH | 100 µH | 1 mH | 1 mH |
| Inductance frequency - test | 1 kHz | 100 kHz | 1 kHz | 100 kHz | 1 kHz | 100 kHz |
| Operating temperature | -40°C ~ 105°C | -40°C~105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C~105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) |
Request a quote on any TDK Corporation SLF7032T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
