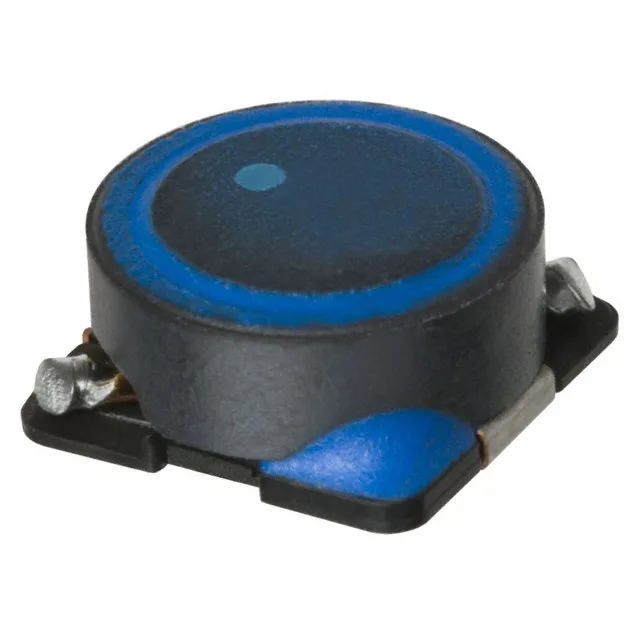

SLF10145T-101M1R0-H
TDK Corporation
SLF-H100 µH-40°C~125°C
Ref. price$1.4500
Lead time on requestGet quote
TDK Corporation SLF10145T Series
41 variants · TDK Corporation
About the TDK Corporation SLF10145T Series
The TDK Corporation SLF10145T Series series groups 41 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Nonstandard, frequency - self resonant of - and height - seated of 0.189\" (4.80mm). Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TDK Corporation SLF10145T Series variants and discontinued ones from a single page.
Select a variant by
- Current - saturation
- 1A · 2.4A · 3A · 320mA · 790mA
- Current rating
- 1.1 A · 2.2 A · 2.5 A · 290 mA · 810 mA
- DC resistance
- 3.36Ohm Max · 36.4mOhm · 43.7mOhm Max · 56.6mOhm Max · 56.64mOhm Max · 240mOhm Max · 420mOhm Max
- Inductance
- 1 mH · 10 µH · 15 µH · 100 µH · 150 µH
- Operating temperature
- -40°C ~ 105°C · -40°C ~ 125°C · -40°C~105°C · -40°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Ratings
- - · AEC-Q200
Shared specifications
- Case
- Nonstandard
- Frequency - self resonant
- -
- Height - seated
- 0.189\" (4.80mm)
- Inductance frequency - test
- 1 kHz
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Q @ freq
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.398\" L x 0.398\" W (10.10mm x 10.10mm)
- Tolerance
- ±20%
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | SLF10145T-101M1R0-H | SLF10145T-100M2R5-PF | SLF10145T-102MR29-PF | SLF10145T-100M2R5-H | SLF10145T-101M1R0-PF | SLF10145T-150M2R2-PF |
|---|---|---|---|---|---|---|
| Current - saturation | 1A | 3A | 320mA | 3A | 1A | 2.4A |
| Current rating | 1.1 A | 2.5 A | 290 mA | 2.5 A | 1.1 A | 2.2 A |
| DC resistance | 240mOhm Max | 43.7mOhm Max | 3.36Ohm Max | 36.4mOhm | 240mOhm Max | 56.6mOhm Max |
| Inductance | 100 µH | 10 µH | 1 mH | 10 µH | 100 µH | 15 µH |
| Operating temperature | -40°C~125°C | -40°C~105°C | -40°C~105°C | -40°C~125°C | -40°C~105°C | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Ratings | AEC-Q200 | - | - | AEC-Q200 | - | - |
Request a quote on any TDK Corporation SLF10145T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
