NR4018T3R3M
Taiyo Yuden
3.3 µHTape & Reel (TR); Cut Tape (CT)-25°C~120°C
Ref. price$0.3900
Lead time on requestGet quote

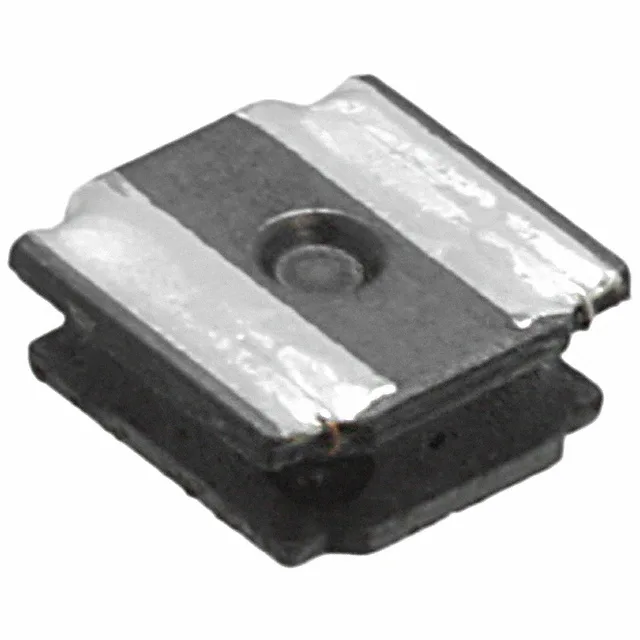

Taiyo Yuden NR4018T Series
14 variants · Taiyo Yuden
About the Taiyo Yuden NR4018T Series
The Taiyo Yuden NR4018T Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of Nonstandard, height - seated of 0.071\" (1.80mm) and inductance frequency - test of 100 kHz. Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Taiyo Yuden NR4018T Series variants and discontinued ones from a single page.
Select a variant by
- Current - saturation
- 1.2A · 2A · 2.7A · 4A · 270mA · 310mA · 400mA · 470mA · 570mA · 650mA · 800mA · 940mA
- Current rating
- 1.23 A · 1.44 A · 1.83 A · 170 mA · 220 mA · 270 mA · 320 mA · 420 mA · 490 mA · 590 mA · 650 mA · 840 mA
- DC resistance
- 1.2Ohm Max · 1.8Ohm Max · 3Ohm Max · 4.8Ohm Max · 36mOhm Max · 72mOhm Max · 84mOhm Max · 216mOhm Max · 300mOhm Max · 432mOhm Max · 636mOhm Max · 780mOhm Max
- Frequency - self resonant
- 4MHz · 5.5MHz · 6.5MHz · 8.3MHz · 10MHz · 12MHz · 16MHz · 19MHz · 24MHz · 44MHz · 52MHz · 80MHz
- Inductance
- 1 µH · 2.2 µH · 3.3 µH · 10 µH · 15 µH · 22 µH · 33 µH · 47 µH · 68 µH · 100 µH · 150 µH · 220 µH
- Operating temperature
- -25°C ~ 120°C · -25°C~120°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Tolerance
- ±20% · ±30%
Shared specifications
- Case
- Nonstandard
- Height - seated
- 0.071\" (1.80mm)
- Inductance frequency - test
- 100 kHz
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Q @ freq
- -
- Ratings
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.157\" L x 0.157\" W (4.00mm x 4.00mm)
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | NR4018T3R3M | NR4018T101M | NR4018T2R2M | NR4018T680M | NR4018T100M | NR4018T150M |
|---|---|---|---|---|---|---|
| Current - saturation | 2A | 400mA | 2.7A | 470mA | 1.2A | 940mA |
| Current rating | 1.23 A | 270 mA | 1.44 A | 320 mA | 840 mA | 650 mA |
| DC resistance | 84mOhm Max | 1.8Ohm Max | 72mOhm Max | 1.2Ohm Max | 216mOhm Max | 300mOhm Max |
| Frequency - self resonant | 44MHz | 6.5MHz | 52MHz | 8.3MHz | 24MHz | 19MHz |
| Inductance | 3.3 µH | 100 µH | 2.2 µH | 68 µH | 10 µH | 15 µH |
| Operating temperature | -25°C~120°C | -25°C~120°C | -25°C~120°C | -25°C~120°C | -25°C ~ 120°C | -25°C ~ 120°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
Request a quote on any Taiyo Yuden NR4018T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
