Taiwan Semiconductor Corporation ES2J Series

5 variants · Taiwan Semiconductor Corporation

About the Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series series

The Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - average rectified of 2A, mounting type of Surface Mount and reverse recovery time of 35 ns. Variants differ by capacitance @ vr, f, case and current - reverse leakage @ vr, so you can match the exact capacitance @ vr, f your application requires using the selection guide below. All listed Taiwan Semiconductor Corporation ES2J Series part numbers are active and orderable.

Select a variant by

Capacitance @ vr, f: 9pF @ 4V, 1MHz · 20pF @ 4V, 1MHz · 21pF @ 4V, 1MHz
Case: DO-214AA, SMB · DO-214AC, SMA · SOD-123F · SOD-128
Current - reverse leakage @ vr: 1 µA @ 600 V · 5 µA @ 600 V · 10 µA @ 600 V
Operating temperature - junction: -55°C ~ 150°C · -55°C~150°C
Package: Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT)

Variant comparison

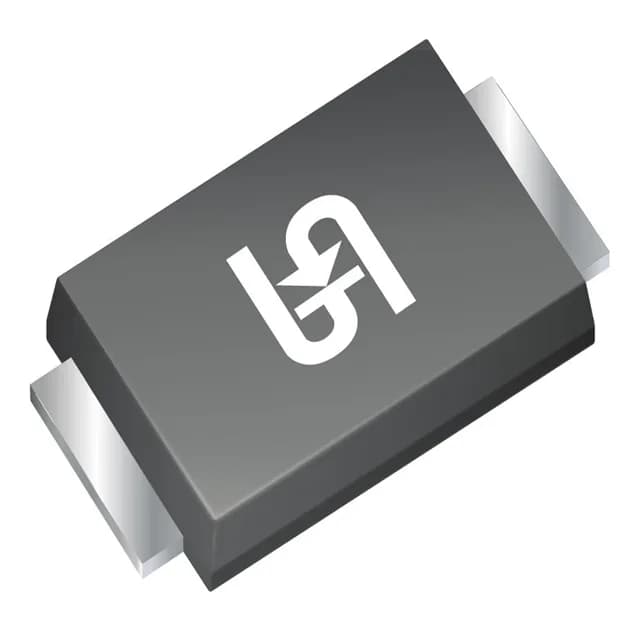

Parameter	ES2JA	ES2JAH	ES2JFL	ES2JH	ES2JFSH
Capacitance @ vr, f	20pF @ 4V, 1MHz	20pF @ 4V, 1MHz	9pF @ 4V, 1MHz	20pF @ 4V, 1MHz	21pF @ 4V, 1MHz
Case	DO-214AC, SMA	DO-214AC, SMA	SOD-123F	DO-214AA, SMB	SOD-128
Current - reverse leakage @ vr	10 µA @ 600 V	10 µA @ 600 V	5 µA @ 600 V	10 µA @ 600 V	1 µA @ 600 V
Operating temperature - junction	-55°C~150°C	-55°C~150°C	-55°C ~ 150°C	-55°C~150°C	-55°C ~ 150°C
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)

Shared specifications

Current - average rectified: 2A
Mounting type: Surface Mount
Reverse recovery time: 35 ns
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Voltage - DC reverse (Vr): 600 V
Voltage - forward (Vf) (Max) @ if: 1.7 V @ 2 A

Request a quote on any Taiwan Semiconductor Corporation ES2J Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series variants differ?: Taiwan Semiconductor Corporation ES2J Series part numbers differ by capacitance @ vr, f, case, current - reverse leakage @ vr and operating temperature - junction. Use the selection guide above to pick by capacitance @ vr, f.
How many Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series part numbers are listed?: 5 Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Taiwan Semiconductor Corporation Taiwan Semiconductor Corporation ES2J Series?: Request a quote (RFQ) for any Taiwan Semiconductor Corporation ES2J Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
