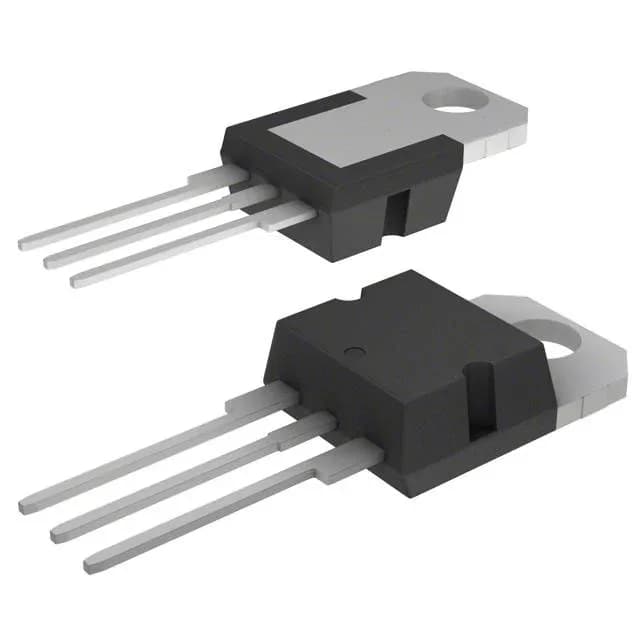

STP6N90K5
STMicroelectronics
-55°C ~ 150°C (TJ)MDmesh™ K5Tube
Ref. price$2.2600
Lead time on requestGet quote ›
STMicroelectronics STP6 Series
3 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics STP6 Series series
The STMicroelectronics STMicroelectronics STP6 Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common drive voltage (Max rds on, min rds on) of 10V, FET feature of - and FET type of N-Channel. Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed STMicroelectronics STP6 Series part numbers are active and orderable.
Select a variant by
- Case
- TO-220-3 · TO-220-3 Full Pack
- Current - continuous drain (Id) @ 25°C
- 5.8A (Tc) · 6A (Tc) · 9A (Tc)
- Drain to source voltage
- 900 V · 950 V
- Operating temperature
- -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Power dissipation
- 30W (Tc) · 90W (Tc) · 110W (Tc)
- Rds on (Max) @ id, vgs
- 1.1Ohm @ 3A, 10V · 1.25Ohm @ 3A, 10V · 2Ohm @ 2.9A, 10V
- Vgs(th) (Max) @ id
- 4.5V @ 100µA · 5V @ 100µA
Variant comparison
| Parameter | STP6N90K5 | STP6N95K5 | STP6NK90ZFP |
|---|---|---|---|
| Case | TO-220-3 | TO-220-3 | TO-220-3 Full Pack |
| Current - continuous drain (Id) @ 25°C | 6A (Tc) | 9A (Tc) | 5.8A (Tc) |
| Drain to source voltage | 900 V | 950 V | 900 V |
| Operating temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C~150°C(TJ) |
| Power dissipation | 110W (Tc) | 90W (Tc) | 30W (Tc) |
| Rds on (Max) @ id, vgs | 1.1Ohm @ 3A, 10V | 1.25Ohm @ 3A, 10V | 2Ohm @ 2.9A, 10V |
| Vgs(th) (Max) @ id | 5V @ 100µA | 5V @ 100µA | 4.5V @ 100µA |
Shared specifications
- Drive voltage (Max rds on, min rds on)
- 10V
- FET feature
- -
- FET type
- N-Channel
- Mounting type
- Through Hole
- Package
- Tube
- Technology
- MOSFET (Metal Oxide)
- Vgs
- ±30V
Request a quote on any STMicroelectronics STP6 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics STP6 Series variants differ?
- STMicroelectronics STP6 Series part numbers differ by case, current - continuous drain (Id) @ 25°C, drain to source voltage and operating temperature. Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics STP6 Series part numbers are listed?
- 3 STMicroelectronics STMicroelectronics STP6 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics STP6 Series?
- Request a quote (RFQ) for any STMicroelectronics STP6 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
