LM393ADT
STMicroelectronics
Tape & Reel (TR); Cut Tape (CT)General PurposeCMOS, DTL, ECL, MOS, Open-Collector, TTL
Ref. price$0.5500
Lead time on requestGet quote ›
STMicroelectronics LM39 Series
6 variants · STMicroelectronics
About the STMicroelectronics STMicroelectronics LM39 Series series
The STMicroelectronics STMicroelectronics LM39 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common CMRR, PSRR of -, hysteresis of - and mounting type of Surface Mount. Variants differ by case, current - input bias and current - output, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current STMicroelectronics LM39 Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · 8-UFDFN Exposed Pad
- Current - input bias
- - · 0.1µA @ 5V · 0.25µA @ 5V
- Current - output
- - · 16mA @ 5V · 18mA @ 5V
- Current - quiescent
- 1mA · 2.5mA
- Operating temperature
- - · 0°C~70°C
- Output type
- CMOS, DTL, ECL, MOS, Open-Collector, TTL · CMOS, MOS, Open-Collector, TTL
- Package
- Tape & Reel (TR) · Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison

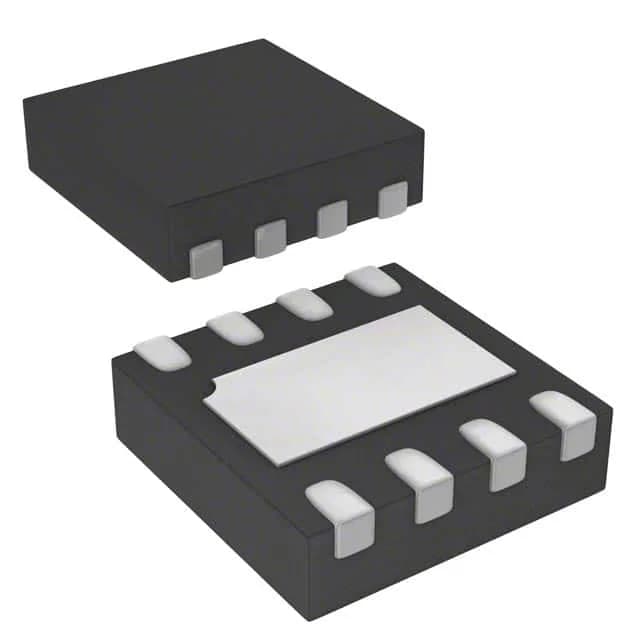

| Parameter | LM393ADT | LM393QT | LM393DT | LM393ST | LM393WDT | LM393D |
|---|---|---|---|---|---|---|
| Case | 8-SOIC (0.154\", 3.90mm Width) | 8-UFDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) |
| Current - input bias | 0.1µA @ 5V | - | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V |
| Current - output | 18mA @ 5V | - | 16mA @ 5V | 16mA @ 5V | 16mA @ 5V | 18mA @ 5V |
| Current - quiescent | 2.5mA | 2.5mA | 2.5mA | 1mA | 2.5mA | 2.5mA |
| Operating temperature | 0°C~70°C | - | 0°C~70°C | 0°C~70°C | 0°C~70°C | 0°C~70°C |
| Output type | CMOS, DTL, ECL, MOS, Open-Collector, TTL | CMOS, DTL, ECL, MOS, Open-Collector, TTL | CMOS, MOS, Open-Collector, TTL | CMOS, MOS, Open-Collector, TTL | CMOS, MOS, Open-Collector, TTL | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tube |
Shared specifications
- CMRR, PSRR
- -
- Hysteresis
- -
- Mounting type
- Surface Mount
- Number of elements
- 2
- Propagation delay
- -
- Type
- General Purpose
- Voltage - supply, single (Dual (±))
- 2V ~ 36V, ±1V ~ 18V
Request a quote on any STMicroelectronics LM39 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the STMicroelectronics STMicroelectronics LM39 Series variants differ?
- STMicroelectronics LM39 Series part numbers differ by case, current - input bias, current - output and current - quiescent. Use the selection guide above to pick by case.
- How many STMicroelectronics STMicroelectronics LM39 Series part numbers are listed?
- 6 STMicroelectronics STMicroelectronics LM39 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for STMicroelectronics STMicroelectronics LM39 Series?
- Request a quote (RFQ) for any STMicroelectronics LM39 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
