SMP1320-079LF
Skyworks Solutions
-65°C ~ 150°C (TA)Tape & Reel (TR); Cut Tape (CT)PIN - Single
Ref. price$0.43
Lead time on requestGet quote ›
Skyworks Solutions SMP13 Series
17 variants · Skyworks Solutions
About the Skyworks Solutions Skyworks Solutions SMP13 Series series
The Skyworks Solutions Skyworks Solutions SMP13 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common diode type of PIN - Single and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by capacitance @ vr, f, case and operating temperature, so you can match the exact capacitance @ vr, f your application requires using the selection guide below.
Select a variant by
- Capacitance @ vr, f
- 0.3pF @ 30V, 1MHz · 0.35pF @ 30V, 1MHz · 1pF @ 0V, 1MHz
- Case
- 2-VDFN Exposed Pad · 0402 (1005 Metric) · SC-79, SOD-523
- Operating temperature
- -65°C ~ 150°C (TA) · -40°C ~ 150°C (TA)
- Power dissipation
- 2.5 W · 250 mW · 750 mW
- Resistance @ if, f
- 1.9Ohm @ 10mA, 100MHz · 500mOhm @ 100mA, 100MHz · 900mOhm @ 10mA, 100MHz
- Voltage - peak reverse
- 50V · 200V
- Current - max
- 150 mA · 200 mA
Variant comparison

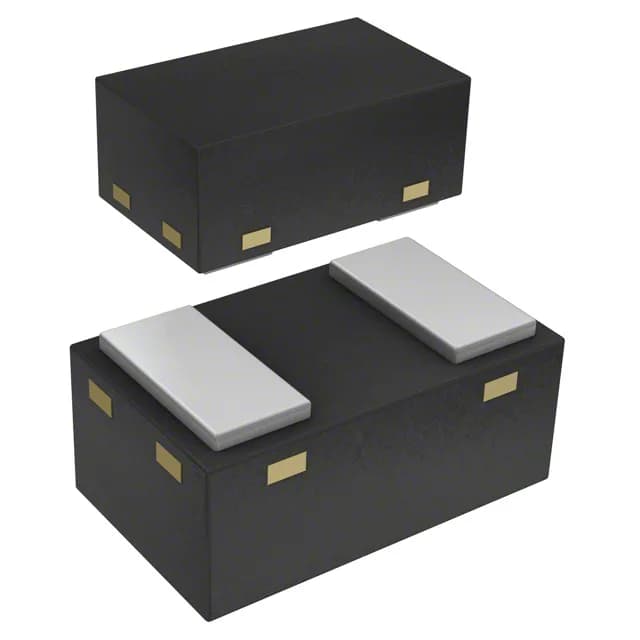

| Parameter | SMP1320-079LF | SMP1330-040LF | SMP1331-085LF |
|---|---|---|---|
| Capacitance @ vr, f | 0.3pF @ 30V, 1MHz | 1pF @ 0V, 1MHz | 0.35pF @ 30V, 1MHz |
| Case | SC-79, SOD-523 | 0402 (1005 Metric) | 2-VDFN Exposed Pad |
| Operating temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -40°C ~ 150°C (TA) |
| Power dissipation | 250 mW | 750 mW | 2.5 W |
| Resistance @ if, f | 900mOhm @ 10mA, 100MHz | 1.9Ohm @ 10mA, 100MHz | 500mOhm @ 100mA, 100MHz |
| Voltage - peak reverse | 50V | 50V | 200V |
| Current - max | — | 150 mA | 200 mA |
Shared specifications
- Diode type
- PIN - Single
- Package
- Tape & Reel (TR); Cut Tape (CT)
Request a quote on any Skyworks Solutions SMP13 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
