RS1G201ATTB1
Rohm Semiconductor
[IN STOCK] In Stock: 1 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Current - continuous drain (Id) @ 25°C | 20A (Ta), 78A (Tc) |
| Power dissipation | 3W (Ta), 40W (Tc) |
| Operating temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |

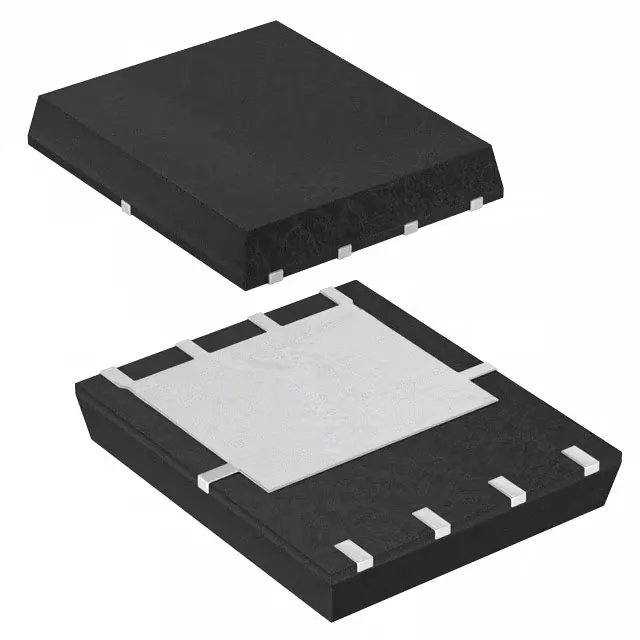

| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 5.2mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 130 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 6890 pF @ 20 V |
RS1G201ATTB1
