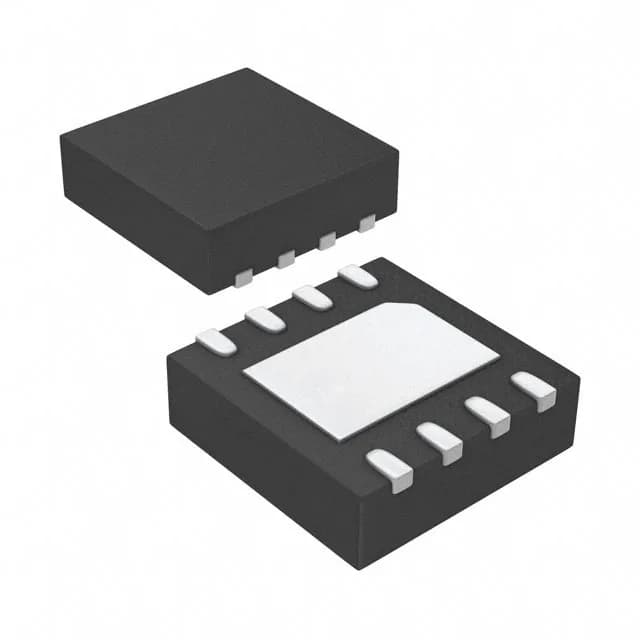

RT9624AZQW
Richtek USA Inc.
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 125°C (TJ)N-Channel MOSFET
Ref. price$0.8300
Lead time on requestGet quote ›
Richtek USA Inc. RT96 Series
16 variants · Richtek USA Inc.
About the Richtek USA Inc. Richtek USA Inc. RT96 Series series
The Richtek USA Inc. Richtek USA Inc. RT96 Series series groups 16 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common channel type of Synchronous, current - peak output (Source, sink) of - and gate type of N-Channel MOSFET. Variants differ by case, driven configuration and high side voltage - max (Bootstrap), so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 8-WDFN Exposed Pad · 8-WFDFN Exposed Pad
- Driven configuration
- Half-Bridge · High-Side or Low-Side
- High side voltage - max (Bootstrap)
- 15 V · 46 V
- Input type
- Inverting, Non-Inverting · Non-Inverting
- Logic voltage - VIL, VIH
- - · 0.7V, 3.2V
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C ~ 125°C (TJ) · -40°C~85°C(TA) · -40°C~125°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | RT9624AZQW | RT9624AZS | RT9624BZQW | RT9624BZS | RT9624CGQWA | RT9624DGQWA |
|---|---|---|---|---|---|---|
| Case | 8-WDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-WDFN Exposed Pad | 8-SOIC (0.154\", 3.90mm Width) | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Driven configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | High-Side or Low-Side | High-Side or Low-Side |
| High side voltage - max (Bootstrap) | 15 V | 15 V | 15 V | 15 V | 46 V | 15 V |
| Input type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Non-Inverting |
| Logic voltage - VIL, VIH | 0.7V, 3.2V | 0.7V, 3.2V | 0.7V, 3.2V | 0.7V, 3.2V | - | - |
| Operating temperature | -40°C ~ 125°C (TJ) | -40°C~125°C(TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Channel type
- Synchronous
- Current - peak output (Source, sink)
- -
- Gate type
- N-Channel MOSFET
- Mounting type
- Surface Mount
- Number of drivers
- 2
- Rise (Fall time)
- 25ns, 12ns
- Voltage
- 4.5V ~ 13.2V
Request a quote on any Richtek USA Inc. RT96 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Richtek USA Inc. Richtek USA Inc. RT96 Series variants differ?
- Richtek USA Inc. RT96 Series part numbers differ by case, driven configuration, high side voltage - max (Bootstrap) and input type. Use the selection guide above to pick by case.
- How many Richtek USA Inc. Richtek USA Inc. RT96 Series part numbers are listed?
- 16 Richtek USA Inc. Richtek USA Inc. RT96 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Richtek USA Inc. Richtek USA Inc. RT96 Series?
- Request a quote (RFQ) for any Richtek USA Inc. RT96 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
