RT9013-12GB
Richtek USA Inc.
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C50dB (10kHz)
Ref. price$2.1400
Lead time on requestGet quote ›
Richtek USA Inc. RT90 Series
129 variants · Richtek USA Inc.
About the Richtek USA Inc. Richtek USA Inc. RT90 Series series
The Richtek USA Inc. Richtek USA Inc. RT90 Series series groups 129 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount, number of regulators of 1 and output configuration of Positive. Variants differ by case, control features and current - output, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 5-TSSOP, SC-70-5, SOT-353 · 6-WDFN Exposed Pad · 6-WFDFN Exposed Pad · SC-74A, SOT-753 · SOT-23-5 Thin, TSOT-23-5
- Control features
- Current Limit, Enable · Enable
- Current - output
- 300mA · 500mA · 600mA
- Current - quiescent
- 4 µA · 50 µA
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 85°C (TA) · -40°C~85°C · -40°C~85°C(TA)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- PSRR
- 50dB (10kHz) · 75dB (1kHz)
- Voltage - output (Min (Fixed))
- 1.2V · 1.5V · 1.8V · 2.5V · 2.8V · 2.85V · 3V · 3.3V
Variant comparison
| Parameter | RT9013-12GB | RT9013-15GB | RT9013-18GB | RT9013-18GQW | RT9013-25GB | RT9013-28GB |
|---|---|---|---|---|---|---|

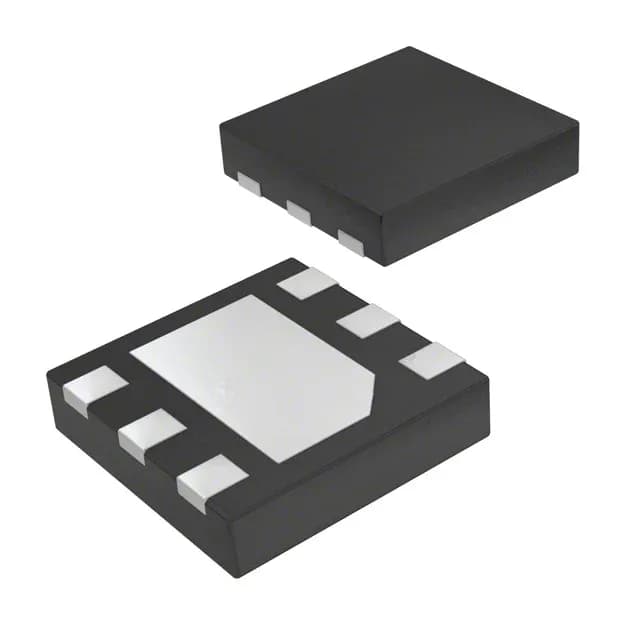

| Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | 6-WDFN Exposed Pad | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Control features | Enable | Enable | Enable | Current Limit, Enable | Enable | Enable |
| Current - output | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - quiescent | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Operating temperature | -40°C ~ 85°C | -40°C~85°C | -40°C~85°C | -40°C~85°C(TA) | -40°C~85°C | -40°C~85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| PSRR | 50dB (10kHz) | 50dB (10kHz) | 50dB (10kHz) | 50dB (10kHz) | 50dB (10kHz) | 50dB (10kHz) |
| Voltage - output (Min (Fixed)) | 1.2V | 1.5V | 1.8V | 1.8V | 2.5V | 2.8V |
Shared specifications
- Mounting type
- Surface Mount
- Number of regulators
- 1
- Output configuration
- Positive
- Output type
- Fixed
- Protection features
- Over Current, Over Temperature
- Voltage - input
- 5.5V
- Voltage - output
- -
Request a quote on any Richtek USA Inc. RT90 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Richtek USA Inc. Richtek USA Inc. RT90 Series variants differ?
- Richtek USA Inc. RT90 Series part numbers differ by case, control features, current - output and current - quiescent. Use the selection guide above to pick by case.
- How many Richtek USA Inc. Richtek USA Inc. RT90 Series part numbers are listed?
- 129 Richtek USA Inc. Richtek USA Inc. RT90 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Richtek USA Inc. Richtek USA Inc. RT90 Series?
- Request a quote (RFQ) for any Richtek USA Inc. RT90 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
