SLG59M1551V
Renesas Electronics
0.85V ~ 1.9VTape & Reel (TR); Cut Tape (CT)CMOS
Ref. price$0.6
Lead time on requestGet quote ›
Renesas Electronics SLG5 Series
6 variants · Renesas Electronics
About the Renesas Electronics Renesas Electronics SLG5 Series series
The Renesas Electronics Renesas Electronics SLG5 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common input type of CMOS, mounting type of Surface Mount and number of outputs of 1. Variants differ by case, current - output and rds on, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 4-UFDFN · 8-PowerWFDFN · 8-UFDFN
- Current - output
- 2A · 2.5A · 4A
- Rds on
- 7.8mOhm · 8.5mOhm · 15.5mOhm · 22.5mOhm
- Voltage - supply (Vcc (Vdd))
- 0.85V ~ 1.9V · 1.5V ~ 5.5V · 2.5V ~ 5.5V
Variant comparison

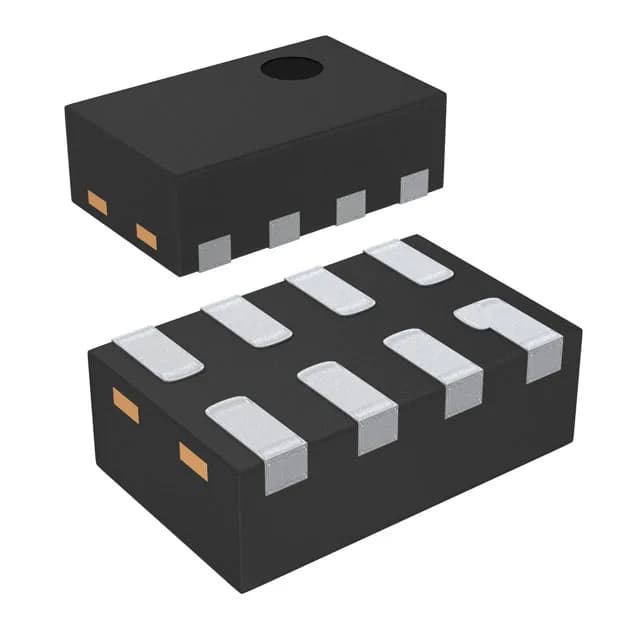

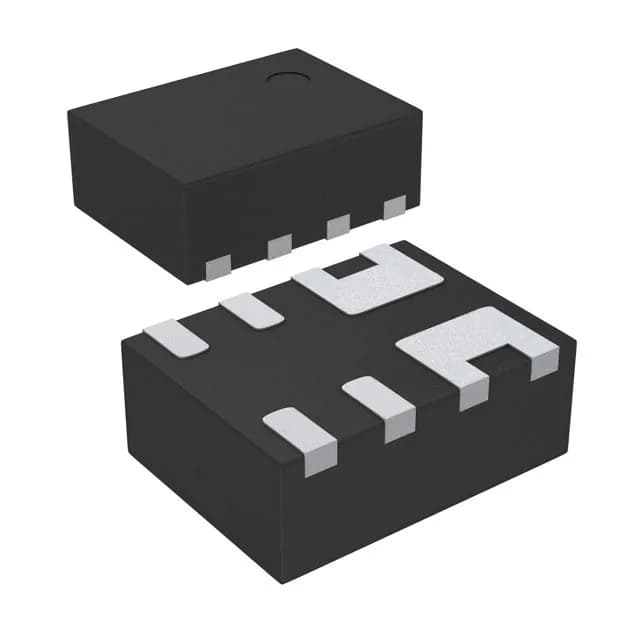

| Parameter | SLG59M1551V | SLG59M1563V | SLG59M301V | SLG59M309V |
|---|---|---|---|---|
| Case | 4-UFDFN | 8-UFDFN | 8-PowerWFDFN | 8-PowerWFDFN |
| Current - output | 2A | 2.5A | 4A | 4A |
| Rds on | 15.5mOhm | 22.5mOhm | 8.5mOhm | 7.8mOhm |
| Voltage - supply (Vcc (Vdd)) | 0.85V ~ 1.9V | 1.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
Shared specifications
- Input type
- CMOS
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Operating temperature
- -40°C ~ 85°C (TA)
- Output configuration
- High Side
- Output type
- N-Channel
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Ratio - Input:Output
- 1:1
- Switch type
- General Purpose
Request a quote on any Renesas Electronics SLG5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
