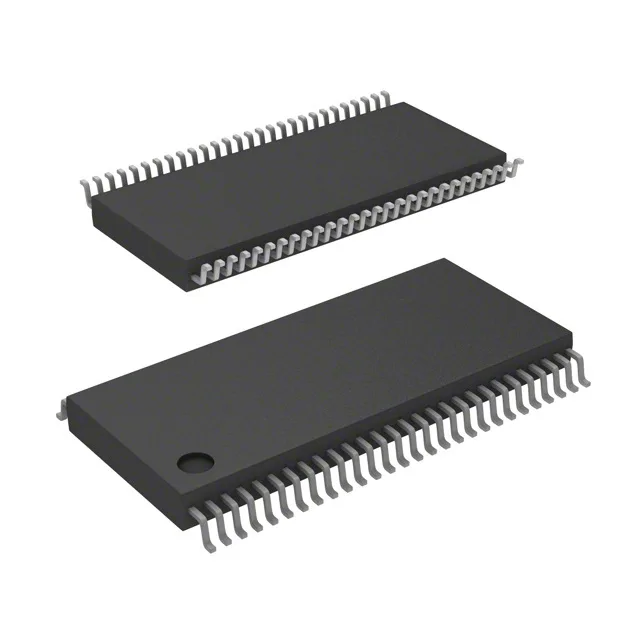

Renesas QS3VH16211PAG8 Bus Switch, 12 x 1:1, 56-TSSOP

MPNQS3VH16211PAG8
End of Life

Renesas Electronics 3VH series Bus Switch, QS3VH16211PAG8, 12 x 1:1 circuit, 2 independent circuits, 56-TFSOP (0.240", 6.10mm Width) surface mount package, 2.3V ~ 3.6V single supply, -40°C ~ 85°C operating temperature.

$4.9Ref. price · indicative, final on quote
QS3VH16211PAG8 datasheet
Packaging56-TFSOP (0.240", 6.10mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

QS3VH16211PAG8 Technical Specifications
ParameterValue
TypeBus Switch
Series3VH
Mounting typeSurface Mount
Voltage2.3V ~ 3.6V
Voltage supply sourceSingle Supply
Operating temperature-40°C ~ 85°C
Circuit12 x 1:1
PackageTape & Reel (TR); Cut Tape (CT)
Case56-TFSOP (0.240\", 6.10mm Width)
Independent circuits2

Product details

Bus-switch fit and signal routing

The QS3VH16211PAG8 is a 12-bit bus switch from Renesas' 3VH series, configured as 12 x 1:1 with two independent circuits. Each switch presents a low on-resistance path between the A and B ports when the corresponding output-enable pin is asserted, making it a direct replacement for discrete logic or pass-FET arrays in signal-routing applications.

Housed in a 56-TFSOP (0.240", 6.10 mm width) package, also designated as the supplier device package 56-TSSOP. The 0.50 mm lead pitch is typical for this pin count — the layout footprint matches the standard JEDEC MO-153 variation for 56-lead TSSOP. Surface-mount assembly with a 260°C reflow profile per J-STD-020; no exposed thermal pad, so the thermal path is through the leads alone.

Frequently asked questions

Will QS3VH16211PAG8 drop into a board designed for QS3VH257PAG?

No — the QS3VH257PAG is a 4 x 2:1 multiplexer/demultiplexer in a different package, not a pin-compatible bus switch. The QS3VH16211PAG8 is a 12-bit 1:1 switch in 56-TSSOP; the two serve different routing functions and do not share a common footprint or pinout.
