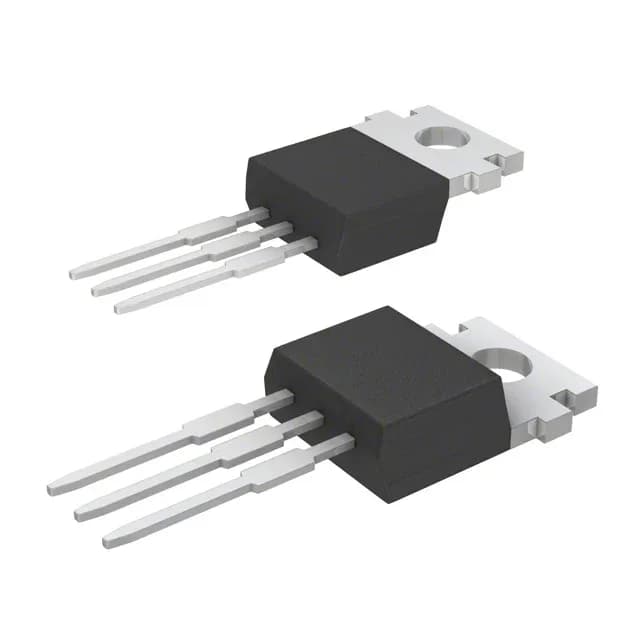

N0412N-S19-AY N-Channel MOSFET, 40 V, 100 A, TO-220

MPNN0412N-S19-AY
End of Life

N0412N-S19-AY N-channel MOSFET, 40 V Vdss, 100 A Id, 3.7 mOhm Rds(on) at 10 V, 100 nC Qg, TO-220-3, through-hole, ROHS3 compliant, active production.

$2.22Ref. price · indicative, final on quote
N0412N-S19-AY datasheet
PackagingTO-220-3
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

N0412N-S19-AY Technical Specifications
ParameterValue
FET typeN-Channel
Mounting typeThrough Hole
Drain to source voltage40 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C100A (Ta)
Power dissipation1.5W (Ta), 119W (Tc)
Operating temperature150°C (TJ)
PackageTube
Vgs±20V
TechnologyMOSFET (Metal Oxide)
CaseTO-220-3
Rds on (Max) @ id, vgs3.7mOhm @ 50A, 10V
Gate charge (Qg) (Max) @ vgs100 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds5550 pF @ 25 V

Product details

3.7 mOhm Rds(on) at 50 A — conduction loss floor

The on-resistance of 3.7 mOhm at Vgs=10 V and 50 A sets the conduction-loss baseline for a 40 V power stage — at 50 A the dissipation is roughly 9.25 W, which the 119 W Tc rating can handle with an adequate heatsink.

Gate drive and switching budget

Total gate charge is 100 nC at Vgs=10 V, with an input capacitance of 5550 pF at Vds=25 V. A 10 V drive voltage is specified for the minimum Rds(on); the gate is rated ±20 V max. For a 100 kHz switching frequency, the average gate-drive current is 100 nC × 100 kHz = 10 mA — well within a standard gate-driver IC's capability, but the peak current during the Miller plateau requires a driver with at least 2 A peak output to keep switching edges clean.

It is ROHS3 compliant.
