Half-bridge N-channel driver with integrated bootstrap — what it means for your motor-drive BOM

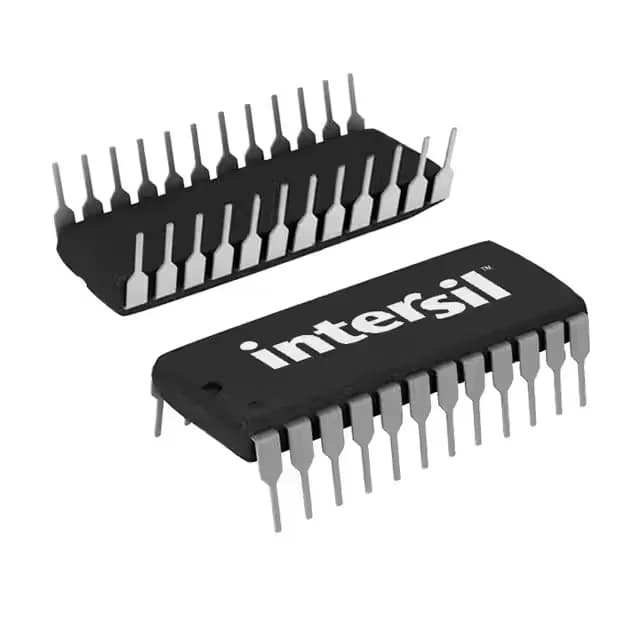

The Renesas HIP4086APZ is a half-bridge gate driver IC designed to drive two N-channel MOSFETs in a half-bridge configuration. Its integrated bootstrap circuit generates the high-side gate drive voltage from a single supply rail, eliminating the need for a separate isolated supply — a practical simplification for DC motor drives, general-purpose inverter stages, and power converters where board space and BOM count matter. The part accepts a logic-level or PWM input interface and switches capacitive and resistive loads, making it a direct fit for brushed and brushless DC motor control up to moderate power levels. The supply and load voltage range of 7 V to 15 V aligns with common industrial and automotive bus voltages — 12 V nominal systems with headroom for transients. The 500 mA peak output current per half-bridge is enough to drive the gate capacitance of small to medium N-channel MOSFETs (typical gate charge up to 50–100 nC) at switching frequencies in the tens to low hundreds of kilohertz. For larger MOSFETs or higher switching frequencies, the 500 mA peak may limit rise/fall times — check the gate charge curve against the driver's source/sink capability. The operating junction temperature range of -40°C to 150°C covers industrial, automotive under-hood, and outdoor telecom environments where thermal cycling is aggressive. The 24-DIP through-hole package (0.300", 7.62mm body) is well suited for prototyping, low-volume production, and applications where vibration resistance or field rework is a priority — the leads can be soldered into plated through-holes or socketed for easy replacement.
500 mA peak output — sizing the gate drive for your MOSFETs
The 500 mA peak output current is the driver's ability to source and sink gate charge during switching transitions. For a MOSFET with a total gate charge (Qg) of, say, 30 nC, the driver can theoretically charge the gate in about 60 ns — but practical PCB inductance and gate resistance will extend that. If your design uses larger MOSFETs with Qg above 100 nC, or you need switching frequencies above 100 kHz, the HIP4086APZ may struggle to achieve clean, fast edges; consider a higher-current driver or parallel the outputs. For typical DC motor drives running at 10–50 kHz with small to medium FETs, the 500 mA peak is adequate.
Lifecycle and compliance
The HIP4086APZ is listed as Active and ROHS3 compliant.
