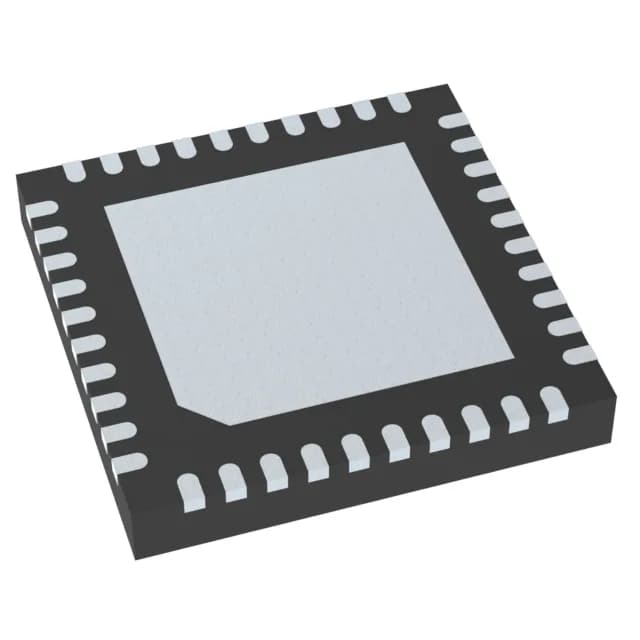

9ZXL0652EKILF PLL Clock Buffer, 400 MHz, 1:6 HCSL

MPN9ZXL0652EKILF
End of Life

Renesas 9ZXL0652EKILF PLL clock buffer, 400 MHz max, 1:6 HCSL output fanout, 3.135V-3.465V supply, -40°C to 85°C, 40-VFQFPN (5x5) package.

$5.25Ref. price · indicative, final on quote
9ZXL0652EKILF datasheet
Packaging40-VFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

9ZXL0652EKILF Technical Specifications
ParameterValue
Mounting typeSurface Mount
Voltage3.135V ~ 3.465V
Frequency400MHz
Operating temperature-40°C ~ 85°C
PLLYes
InputClock
OutputHCSL
PackageTray
Main purposeIntel QPI, PCI Express (PCIe)
Case40-VFQFN Exposed Pad
Number of circuits1
Ratio - Input:Output1:6
Differential - Input:OutputYes/Yes

Product details

400 MHz and 1:6 fanout — what that means for your clock tree

The 400 MHz maximum frequency covers PCIe Gen1 through Gen3 reference clock requirements. The 1:6 input-to-output ratio means one reference clock source feeds up to six PCIe slots, QPI links, or PCH interfaces.

Active production — no LTB risk on this line item

The 9ZXL0652EKILF carries an active product status. No last-time-buy notice, no end-of-life window to track. For a BOM line that needs to stay qualified through multiple production runs, this part does not introduce obsolescence risk. The -40°C to 85°C rating also means it qualifies for environments where the commercial-grade 9DB803DFLFT (0°C to 70°C) would not be acceptable.
