Renesas Electronics 74FCT374CTQG — Microcontrollers & Processors (MCU / MPU / DSP)

74FCT374CTQG Renesas 74FCT D-Type Flip-Flop, 5.2ns

MPN74FCT374CTQG
End of Life

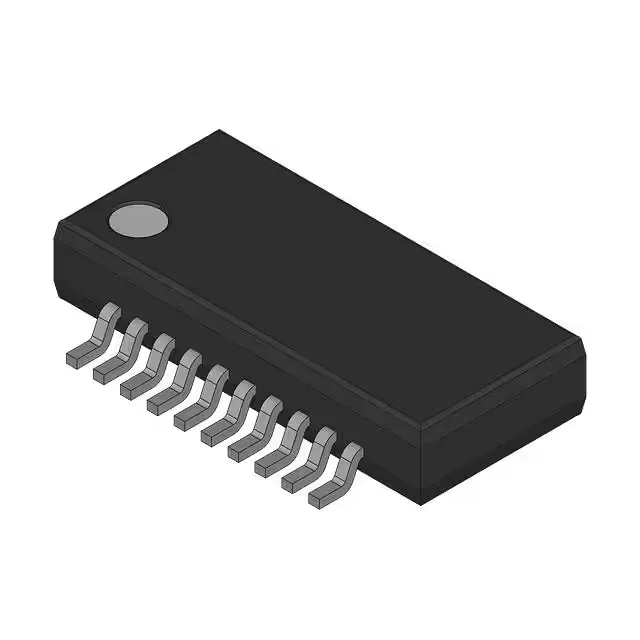

Renesas Electronics 74FCT series D-type flip-flop, 74FCT374CTQG, 8-bit, tri-state non-inverted outputs, positive-edge trigger, 5.2ns propagation delay, 20-SSOP package.

$0.6Ref. price · indicative, final on quote
Packaging20-SSOP (0.154", 3.90mm Width)
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

74FCT374CTQG Technical Specifications
ParameterValue
TypeD-Type
Series74FCT
Output typeTri-State, Non-Inverted
Trigger typePositive Edge
Mounting typeSurface Mount
Voltage4.5V ~ 5.5V
Current - quiescent1 mA
Current - output high, low15mA, 48mA
Operating temperature-40°C ~ 85°C (TA)
PackageBulk
FunctionStandard
Case20-SSOP (0.154\", 3.90mm Width)
Input capacitance6 pF
Number of elements1
Number of bits per element8
Max propagation delay @ v, max CL5.2ns @ 5V, 50pF

Product details

5.2 ns propagation delay — the speed decision

The 74FCT374CTQG: The max propagation delay is 5.2 ns at 5 V supply into a 50 pF load. That sets the upper data-rate ceiling for bus-matching and register applications: with a 5.2 ns clock-to-output delay, the part can comfortably clock at 100 MHz+ in a typical 5 V logic system, but the actual toggle rate at the receiver will be lower once you add trace capacitance and input thresholds. If you are replacing a slower 74FCT part in an existing board, this speed grade keeps the timing margin intact.

Output drive and supply rail

Outputs sink 48 mA and source 15 mA — enough to drive a standard TTL bus or a bank of LEDs through a resistor, but not a heavy capacitive load without a buffer. Quiescent current is 1 mA, which is low enough that a dozen of these on a board won't eat the power budget.

The supplied device package is 20-QSOP, but the part is also listed in a 20-SSOP (0.154-inch wide, 3.90 mm body) — the two are footprint-compatible for rework, though the QSOP has a slightly narrower body width (3.90 mm vs 5.30 mm for standard SSOP). Check your board's land pattern before committing.

Frequently asked questions

How can I order 74FCT374CTQG or check availability?

The 74FCT374CTQG is an active part and can be sourced to order against your BOM quantity. Submit an RFQ for your required volume and delivery window.
