Renesas Electronics 5P49V5901B037NLGI8 — Clock & Timing ICs

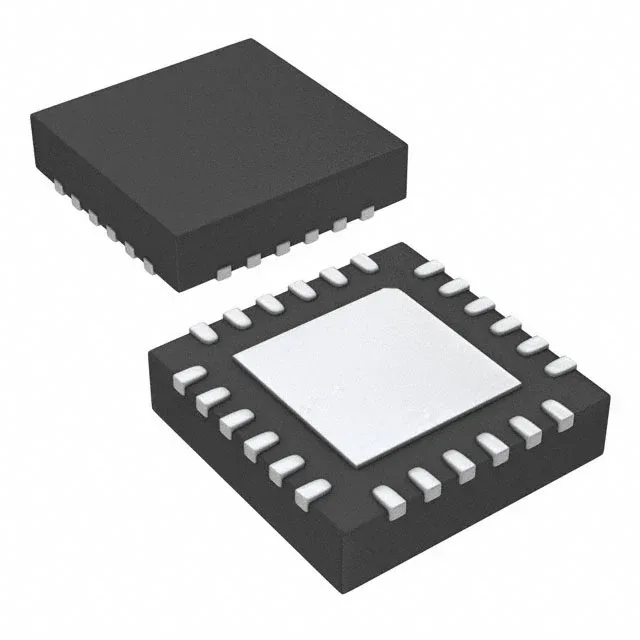

Renesas 5P49V5901B037NLGI8 VersaClock 5 Clock Generator

MPN5P49V5901B037NLGI8
End of Life

Renesas Electronics VersaClock® 5 Clock Generator, 5P49V5901B037NLGI8, PLL Yes, 350 MHz max, 2:4 Input:Output, Differential I/O, 24-VFQFN Exposed Pad, -40°C to 85°C.

$11.35Ref. price · indicative, final on quote
Packaging24-VFQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5P49V5901B037NLGI8 Technical Specifications
ParameterValue
TypeClock Generator
SeriesVersaClock® 5
Mounting typeSurface Mount
Voltage1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
Frequency350MHz
Operating temperature-40°C ~ 85°C (TA)
PLLYes
InputHCSL, LVCMOS, LVDS, LVPECL, Crystal
OutputHCSL, LVCMOS, LVDS, LVPECL
PackageBulk
Case24-VFQFN Exposed Pad
Divider (Multiplier)Yes/No
Number of circuits1
Ratio - Input:Output2:4
Differential - Input:OutputYes/Yes

Product details

Clock generator with 2:4 fanout and differential I/O

The 5P49V5901B037NLGI8 is a PLL-based clock generator from the VersaClock® 5 family, accepting HCSL, LVCMOS, LVDS, LVPECL, or crystal inputs and producing HCSL, LVCMOS, LVDS, or LVPECL outputs up to 350 MHz. With a 2:4 input-to-output ratio and differential-capable I/O on both sides, this part serves as a clean clock source for FPGA, SerDes, or Ethernet PHY reference trees where multiple low-jitter copies of a single reference are needed.

Frequently asked questions

What supply voltages does the 5P49V5901B037NLGI8 require?

This allows separate rails for core, PLL, and output banks.
