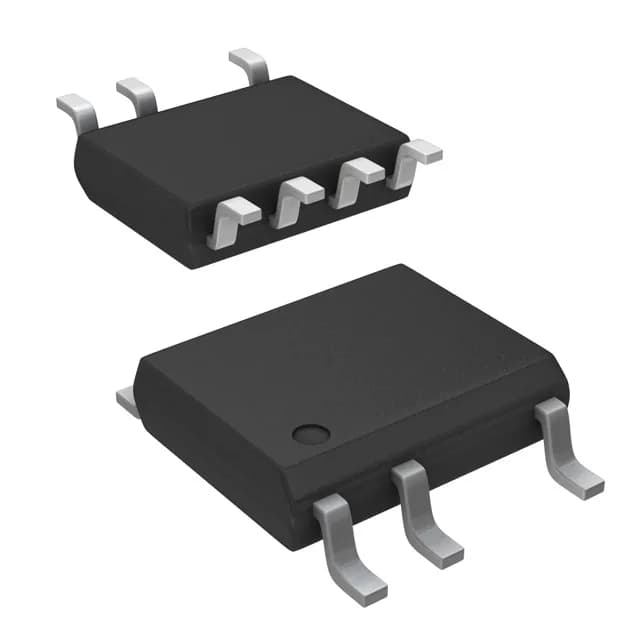

LNK302DG-TL
Power Integrations
Tape & Reel (TR); Cut Tape (CT)-40°C~150°C(TJ)66kHz
Ref. price$1.3300
Lead time on requestGet quote ›
Power Integrations LNK3 Series
62 variants · Power Integrations
About the Power Integrations Power Integrations LNK3 Series series
The Power Integrations Power Integrations LNK3 Series series groups 62 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common control features of -, duty cycle of 69% and fault protection of Current Limiting, Open Loop, Over Temperature, Short Circuit. Variants differ by case, mounting type and package, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-DIP (0.300\", 7.62mm), 7 Leads · 8-SMD (7 Leads), Gull Wing · 8-SOIC (0.154\", 3.90mm Width), 7 Leads
- Mounting type
- Surface Mount · Through Hole
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison
| Parameter | LNK302DG-TL | LNK302DN-TL | LNK302GN-TL | LNK302PN | LNK304DG-TL | LNK304DN-TL |
|---|---|---|---|---|---|---|
| Case | 8-SOIC (0.154\", 3.90mm Width), 7 Leads | 8-SOIC (0.154\", 3.90mm Width), 7 Leads | 8-SMD (7 Leads), Gull Wing | 8-DIP (0.300\", 7.62mm), 7 Leads | 8-SOIC (0.154\", 3.90mm Width), 7 Leads | 8-SOIC (0.154\", 3.90mm Width), 7 Leads |
| Mounting type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
Shared specifications
- Control features
- -
- Duty cycle
- 69%
- Fault protection
- Current Limiting, Open Loop, Over Temperature, Short Circuit
- Frequency
- 66kHz
- Internal switch
- Yes
- Operating temperature
- -40°C~150°C(TJ)
- Output isolation
- Non-Isolated
- Topology
- Buck, Buck-Boost, Flyback
- Voltage - breakdown
- 700V
- Voltage - supply (Vcc (Vdd))
- -
