NC7SZ175L6X
onsemi
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C (TA)175 MHz
Ref. price$0.4600
Lead time on requestGet quote ›
onsemi NC7S Series
4 variants · onsemi
About the onsemi onsemi NC7S Series series
The onsemi onsemi NC7S Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - output high, low of 32mA, 32mA, current - quiescent of 1 µA and input capacitance of 3 pF. Variants differ by case, frequency and function, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current onsemi NC7S Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 6-TSSOP, SC-88, SOT-363 · 6-UFDFN · 8-UFQFN
- Frequency
- 175 MHz · 200 MHz
- Function
- Reset · Set(Preset) and Reset · Standard
- Max propagation delay @ v, max CL
- 4ns @ 5V, 50pF · 5ns @ 5V, 50pF
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C~85°C(TA)
- Output type
- Complementary · Non-Inverted · Tri-State, Non-Inverted
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison

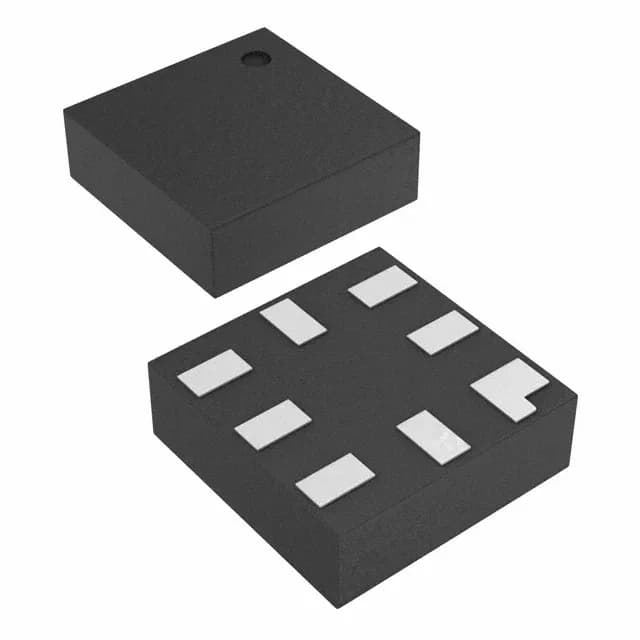

| Parameter | NC7SZ175L6X | NC7SZ374L6X | NC7SZ374P6 | NC7SZ74L8X |
|---|---|---|---|---|
| Case | 6-UFDFN | 6-UFDFN | 6-TSSOP, SC-88, SOT-363 | 8-UFQFN |
| Frequency | 175 MHz | 175 MHz | 175 MHz | 200 MHz |
| Function | Reset | Standard | Standard | Set(Preset) and Reset |
| Max propagation delay @ v, max CL | 4ns @ 5V, 50pF | 4ns @ 5V, 50pF | 4ns @ 5V, 50pF | 5ns @ 5V, 50pF |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C~85°C(TA) | -40°C ~ 85°C (TA) |
| Output type | Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Complementary |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Current - output high, low
- 32mA, 32mA
- Current - quiescent
- 1 µA
- Input capacitance
- 3 pF
- Mounting type
- Surface Mount
- Number of bits per element
- 1
- Number of elements
- 1
- Trigger type
- Positive Edge
- Type
- D-Type
- Voltage
- 1.65V ~ 5.5V
Request a quote on any onsemi NC7S Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the onsemi onsemi NC7S Series variants differ?
- onsemi NC7S Series part numbers differ by case, frequency, function and max propagation delay @ v, max CL. Use the selection guide above to pick by case.
- How many onsemi onsemi NC7S Series part numbers are listed?
- 4 onsemi onsemi NC7S Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for onsemi onsemi NC7S Series?
- Request a quote (RFQ) for any onsemi NC7S Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
