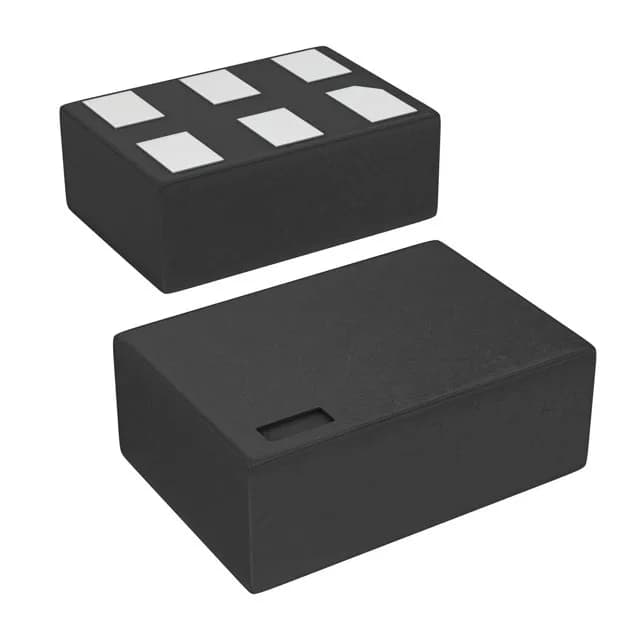

NC7SZ00FHX
onsemi
1.65V ~ 5.5VTape & Reel (TR) Cut Tape (CT)-40°C ~ 85°C
Ref. price$0.3600
Lead time on requestGet quote ›
onsemi NC7S Series
63 variants · onsemi
About the onsemi onsemi NC7S Series series
The onsemi onsemi NC7S Series series groups 63 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - quiescent of 2 µA, input logic level - high of - and input logic level - low of -. Variants differ by case, current - output high, low and features, so you can match the exact case your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current onsemi NC7S Series variants and discontinued ones from a single page.
Select a variant by
- Case
- 5-TSSOP, SC-70-5, SOT-353 · 6-UFDFN · SC-74A, SOT-753
- Current - output high, low
- -, 32mA · 32mA, 32mA
- Features
- - · Open Drain
- Logic type
- AND Gate · Inverter · NAND Gate · NOR Gate · XOR (Exclusive OR)
- Max propagation delay @ v, max CL
- 4.3ns @ 5V, 50pF · 4.5ns @ 5V, 50pF · 6.5ns @ 5V, 50pF
- Number of inputs
- 1 · 2 · 3
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Package
- Cut Tape (CT) · Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | NC7SZ00FHX | NC7SZ02FHX | NC7SZ02L6X | NC7SZ02M5 | NC7SZ05FHX | NC7SZ05L6X |
|---|---|---|---|---|---|---|
| Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | SC-74A, SOT-753 | 6-UFDFN | 6-UFDFN |
| Current - output high, low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | -, 32mA | -, 32mA |
| Features | - | - | - | - | Open Drain | Open Drain |
| Logic type | NAND Gate | NOR Gate | NOR Gate | NOR Gate | Inverter | Inverter |
| Max propagation delay @ v, max CL | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Number of inputs | 2 | 2 | 2 | 2 | 1 | 1 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C~85°C | -40°C~85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
Shared specifications
- Current - quiescent
- 2 µA
- Input logic level - high
- -
- Input logic level - low
- -
- Mounting type
- Surface Mount
- Number of circuits
- 1
- Voltage
- 1.65V ~ 5.5V
Request a quote on any onsemi NC7S Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
